EchoONE
Lightweight real-time airborne laser scanner.
Multispectral Fixed Camera for Perimeter Protection

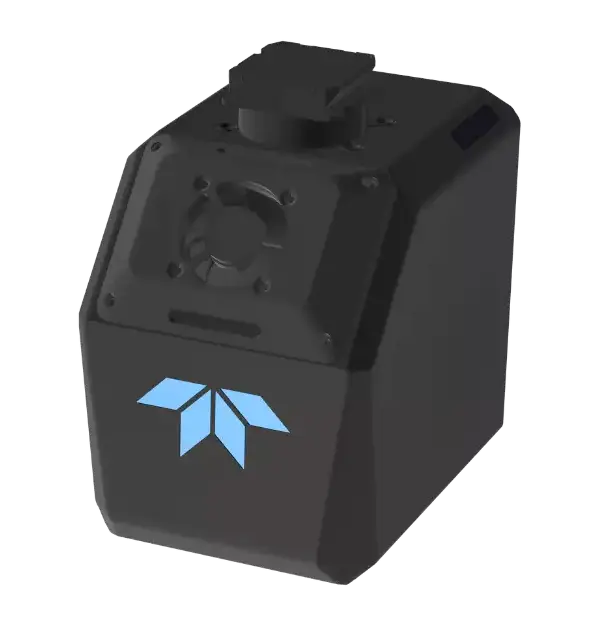

The Teledyne OPTECH EchoONE is a secure, lightweight airborne laser scanner compatible with UAVs such as the DJI M300/M350, Freefly Astro, Inspired Flight IF800, WISPR Skyscout, and others.
For applications including land surveying, electric utility vegetation management and asset management, as well as transportation projects. Deliver secure, colourised engineering-grade lidar point clouds.
Long-range and Lightweight

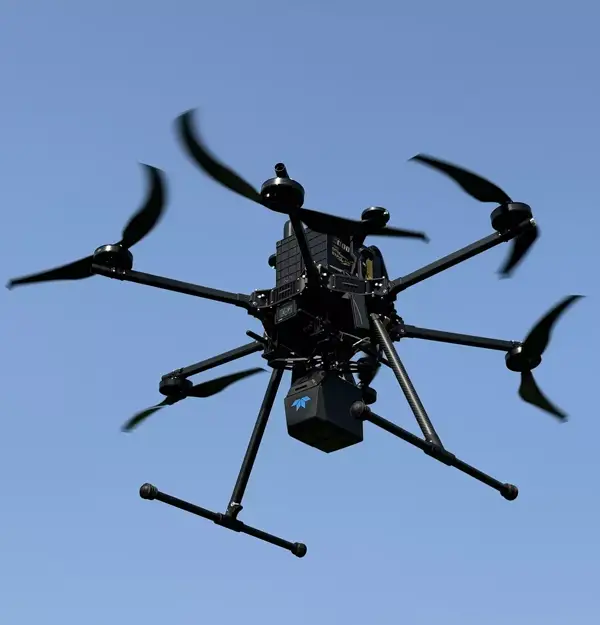

EchoONE weighs just 1.65kg and can be operated from smaller UAVs such as the Freefly Astro, Inspired Flight IF800 and DJI M300/M350, while operating reliably at a regulatory limit of 120m / 400ft agl delivering an accuracy of up-to 1.5cm RMSZ, ranging precision of 5mm and 0.5mrad 1/e2 beam divergence resulting in clean and precise point clouds.
NDAA compliant and affordable
Designed and manufactured in compliance with the latest NDAA requirements ensuring data security while competitively priced to less secure options.
Accurate & fast
Full undecimated georeferenced point clouds generated in real-time allowing infield verification combined with rapid post-processing through RESEPI’s “one-click” PC-Master Pro post-processing solution.
Full-featured post-processing available with Teledyne Geospatial LMS Professional.
Key features of EchoONE
Long Range & Canopy Penetration
270 m range to 20% reflectivity targets
Up to 8 returns per pulse
Wide-Angle Perspective
90 deg × 20 deg field of view
4 unique vertical scan angles
Precise Data
5 mm lidar ranging precision
1.5 cm georeferenced vertical accuracy
Ultra-Lightweight Design
Weighing a total of 1.65kg
Integrated Colourisation Camera
Integrated 5MP global shutter camera
Optional 61MP camera
High-Accuracy IMU
Inertial Labs KERNEL-210 tactical grade IMU
DOCUMENTS
FREQUENTLY ASKED QUESTIONS
What is the Teledyne EchoONE used for?
The EchoONE is a lightweight airborne laser scanner designed for UAVs. It’s commonly used in land surveying, vegetation management for electric utilities, asset inspections, and transport infrastructure projects. It delivers secure, colourised, engineering-grade lidar point clouds.
Which drones are compatible with EchoONE?
EchoONE works seamlessly with UAVs like the DJI M300/M350, Freefly Astro, Inspired Flight IF800, and WISPR Skyscout. It’s also adaptable to other platforms with similar payload capacities.
Is EchoONE compliant with Australian regulations?
Yes, EchoONE is NDAA-compliant and meets Australian standards for commercial UAV operations. It’s suitable for use by government agencies and private contractors across various sectors.
How accurate is the EchoONE’s lidar data?
EchoONE provides vertical accuracy within centimetre-level precision, making it ideal for engineering-grade applications. It supports multiple returns per pulse and offers high-resolution point clouds.
Can EchoONE operate in harsh Australian environments?
Absolutely. It’s built to handle high humidity, dust, and temperature extremes—perfect for the diverse conditions found across Australia, from coastal zones to outback regions.
