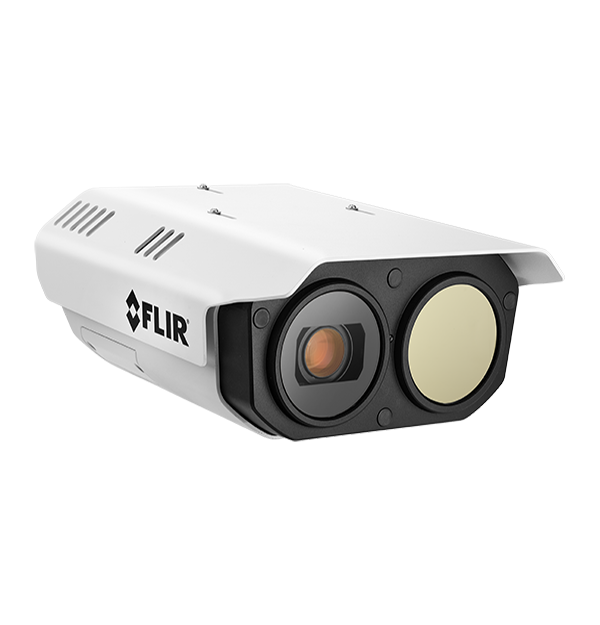

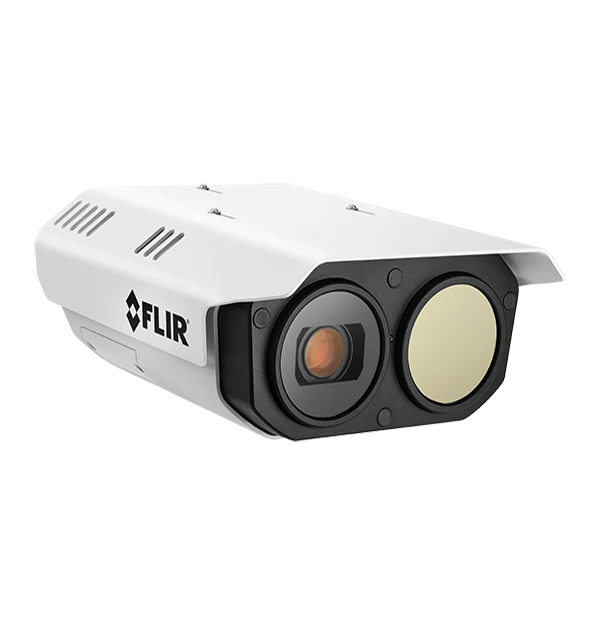

FLIR FH-Series R
Model: FLIR FH-313 R, 320 x 256, 13° FOV
Multispectral Fixed Camera for Early Fire Detection
The FLIR FH-Series R are ruggedised, multispectral fixed cameras that integrate industry-leading thermal imaging with 4K visible imaging to provide rapid visual verification of hot spots in early fire detection applications.
When a hot spot or temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics.
Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality.
Combining the power of thermal hot-spot detection with intelligent vehicle detection, false alarms from hot exhaust pipes can be dramatically reduced.
Rapid detection and visual verification
Integrates a high-resolution thermal and visible sensor for hot-spot detection and visual verification from a single device.
Intelligent alarms
Detect hot spots and intruders without false alarms with on-board video analytics; make detections based on time of day, business hours, and seasonality using the built-in scheduling tool
Easy integration
Deploy the FH-Series R as part of a Teledyne FLIR end-to-end solution or in combination with preferred third-party solutions.
General
| Dimensions (L x W x H) | 314 x 233 x 124 mm/12.4″ x 9.2″ x 4.9″ |
|---|---|
| Power Consumption | Nominal: 15 W Heaters enabled, 12 VDC: 48 W Heaters enabled, all other inputs: 70 W |
|
EN 50130-4 |
| Surge Immunity on Signal Lines | EN 50130-4 |
Compliance & Certifications
| Approvals | FCC Part 15 (Subpart B, class A), CE Marked |
|---|---|
| Certifications | IEC 62368 |
| Compliance | RoHS, WEEE |
Environmental
| Humidity | 0-95% relative humidity |
|---|---|
| IP Rating (dust & water ingress) | IP66 & IP67 |
| Operating Temperature Range | -40°C to 70°C/-40°F to 158°F |
| Shock | IEC 60068-2-27 |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Vibration | IEC 60068-2-6 |
Measurement & Analysis
| Analytics Features | Region Entrance/Intrusion Detection, Crossover/Fence Trespassing; Auto/Manual Depth Setup, Human and Vehicle Rules, Tampering, Loitering, CNN classifier |
|---|---|
| Analytics Management | Web-based confguration and management, masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control |
| Measurement Accuracy | Target below 100 °C (212 °F): ± 5 °C (±9 °F) accuracy Target below 150 °C (302 °F): ± 5% accuracy Target above 150 °C (302 °F): ± 15% accuracy *Measured at 25°C ambient temperature. Error may be greater at extreme temperatures |
| Object Temperature Range | High Gain Mode: 0°C to 160°C 32°F to 320°F) Low Gain Mode: 0°C to 380°C (32°F to 716°F) |
System Integration
| Control Input/Output | Input: two dry alarm contacts Output: two relay contacts 1A max at 24 Vac/30 Vdc Configurable between normally open and normally closed |
|---|---|
| Ethernet | 100/1000 Mbps |
| External Analytics Compatible | Yes |
| Network APIs | NEXUS® SDK NEXUS® CGI ONVIF Profile S, G, T |
| Streaming Resolution | Primary Stream: Thermal: QVGA (320 x 256) Visible: 4k (3840 x 2160), 1080P (1920×1080), 720P (1280×720) & VGA 640×480 Secondary Stream: Thermal: QVGA (320 x 256) Visible: 1080P (1920×1080), 720P (1280×720) & VGA 640×480 |
| Supported Protocols | IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, ONVIF |
| Video Over Ethernet | Two independent channels of H.264/H.265 or M-JPEG (except 4k) for visible and thermal |
Thermal Camera
| Array Format (Thermal) | 320 × 256 |
|---|---|
| Detector Pitch (Thermal) | 17 µm |
| f number (Thermal) | f/1.1 |
| Field of View (FOV) (Thermal) | 13° × 10° |
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC); Thermal and Temporal Triggers |
| Spectral Range (Thermal) | 7.5 µm to 13.5 µm |
| Thermal AGC Modes | Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting |
| Thermal AGC Region of Interest [ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
| Thermal Sensitivity – NETD (Thermal) | <35mK @ 25°C F# 1.0 |
| Video Frame Rate (Thermal) | NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz |
Video & Recording
| Composite Video NTSC or PAL | Hybrid system with IP & analog video |
|---|---|
| Local Storage | Support for SD Card (not supplied) |
Visible Camera
| f number (Visible) | 1.8 |
|---|---|
| Field of View (FOV) (Visible) | 18° × 10° |
| Video Frame Rate (Visible) | 30 Hz or less |
FREQUENTLY ASKED QUESTIONS
What is the primary purpose of the FH-Series R?
It’s a rugged, multispectral fixed camera that integrates thermal and 4K visible imaging—designed for rapid detection and visual verification of hot spots (e.g., early fire detection)
What thermal resolution and sensitivity does it offer?
Models feature up to 640 × 512 thermal resolution with <35 mK NETD sensitivity
What types of visual imaging does it provide?
Includes a 4K (3840 × 2160) visible camera for high-resolution imagery
How are false alarms handled?
On-board video analytics include a ‘vehicle exclusion mode’ to ignore hot vehicle exhausts, reducing false alerts.
Are alarm schedules customizable?
Yes—custom scheduling allows enabling/disabling alarms based on time of day, business hours, or seasonality.
How well does it integrate with systems?
Supports FLIR United VMS, third-party VMS, and is ONVIF conformant (Profiles S/G/T). On-board NEXUS® technology enables easy integration.
What warranty does the thermal sensor carry?
Offers a generous 10-year thermal sensor warranty.
What are its power and environmental specs (non-PTZ models)?
Depending on source, power consumption ranges from 15 W nominal to higher with heaters; device is ruggedized (IP66/67), with operating temps from approximately –35 °C to +70 °C, corrosion resistance, and more.
Does it support RTSP streaming and is authentication enabled?
Yes—RTSP authentication is enabled by default (can be disabled by an Admin/Expert), with separate RTSP URLs for visible and thermal streams.

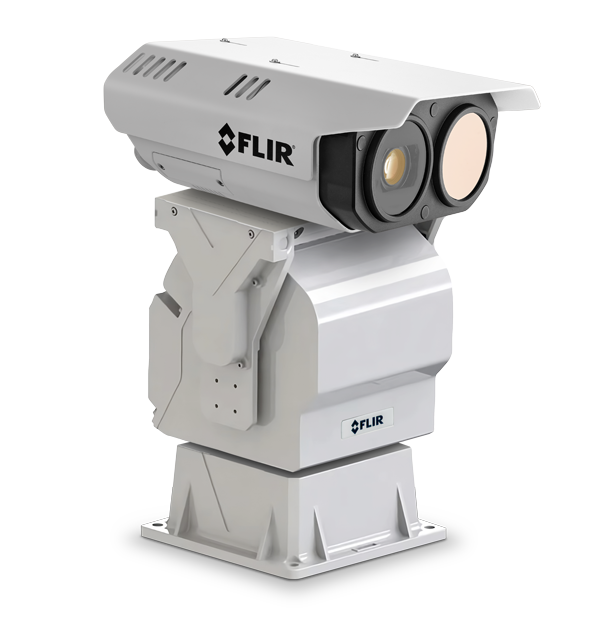

What are the technical specs of PTZ variants (FH-Series R PTZ)?
PTZ models feature up to 640 × 512 thermal resolution, 1080p visible camera with up to 30× zoom, radiometric measurements (min/max/average/differential), microSD storage, cybersecurity features (IEEE 802.1X, TLS/HTTPS), and rugged build (IP66, IK10, surge protection).
