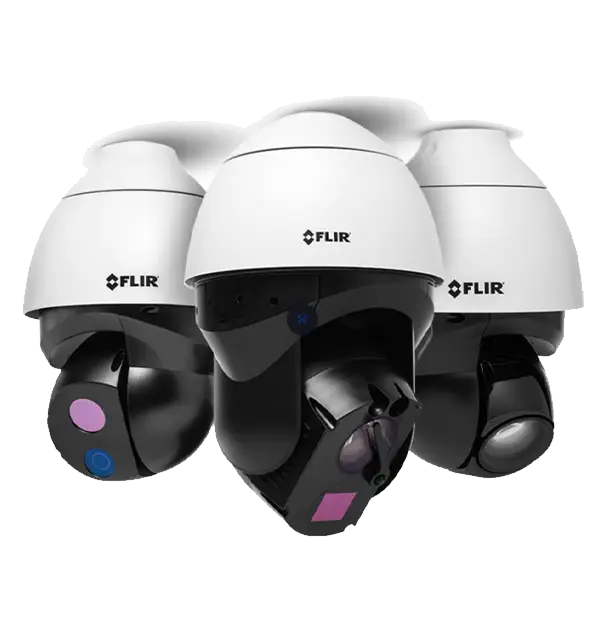

FLIR Elara DX-Series
Thermal Security Camera
Industrial Acoustic Imaging Camera for Partial Discharge Detection, Pressurised Leak Detection & Mechanical Fault Detection
The FLIR Elara™ DX-Series multispectral pan/tilt/zoom (PTZ) security camera provides full situational awareness in the most punishing environments.
Combining thermal and visible light imagers, the Elara DX-Series gives operators the ability to monitor large areas in complete darkness, glaring light, and adverse weather.
The exceptional detection and identification capabilities of multispectral cameras help integrators provide solutions for challenging imaging problems at critical infrastructure sites and remote facilities.
Multispectral surveillance in any conditions
Complete awareness in any lighting or weather conditions, with dual thermal/visible camera coverage as well as 90° field-of-view ground radar.
Real-time communication across FLIR edge devices
Continuously track and precisely locate up to 32 targets simultaneously, with seamless device-to-device communication—including alarm triggering—through FLIR Nexus.
Integrates with existing systems quickly and affordably
Integrates radar target tracking information as well as visible and thermal data with FLIR United VMS and other, third-party video management systems for precise accuracy and full control.
General
|
Long-Life, Uncooled VOx Microbolometer |
|---|---|
| Focus Range | Athermalized, Focus-Free |
| Input Voltage | 24 VAC(±10%) Universal POE injector |
| Thermal Spectral Range | 7.5 μm to 13.5 μm |
| Zoom | Visible: Optical Zoom: 31 |
Environmental
|
0-95% relative |
|---|---|
| IP Rating (dust & water ingress) | IP66 |
| Operating Temperature Range | -40°C to 60°C |
| Shock | IEC 60068-2-27 |
| Storage Temperature | -55°C to 85°C |
| Vibe | IEC 60068-2-64 |
Measurement & Analysis
|
256 |
|---|
PTZ
|
-10° to 190° 0.1° to 60°/sec |
|---|
System Integration
|
10/100/1000 Mbps |
|---|---|
| Streaming Resolution | Thermal: QVGA to VGA Visible: VGA to 4k |
| Supported Protocols | IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP |
Thermal Camera
|
FOV: 6° × 5° Focal Length: 36 mm |
|---|---|
| Thermal Frame Rate | NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz |
| Thermal Image Settings | Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast |
Video & Recording
|
Thermal: One channel of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG |
|---|---|
| Video Image Uniformity Optimization | Automatic Flat Field Correction (FFC) – Thermal and Temporal Triggers |
Visible Camera
|
320 × 240 |
|---|---|
| Focal Length | 6.5mm – 202mm |
| Lens Field of View | Visible: HFOV: 61.8° – 2.15° VFOV: 36.65° – 1.2° |
| Sensitivity | Visible: Color: 0.25 Lux (@ (f1.6 AGC On, 30FPS) B/W: 0.10 Lux (@ (f1.6 AGC On, 30FPS) |
FREQUENTLY ASKED QUESTIONS
What makes the Elara DX-Series unique?
It combines thermal and visible light imaging in one PTZ camera, offering surveillance capabilities even in total darkness, glare, or harsh weather.
What thermal and optical specs does it offer?
- Thermal sensor: uncooled VOx microbolometer (320×240 or 640×512 resolution), < 50 mK sensitivity.
- Visible imaging: 4K resolution with 31× optical zoom, plus up to 8× electronic zoom.
Is the camera suited for tough environments?
Yes. It’s built to withstand harsh conditions with ratings like IP66, NEMA-4X, operating range from –40 °C to 60 °C, and has a lens wiper to maintain visibility.
What are the pan/tilt capabilities?
- Pan: full 360° rotation at speeds from 0.1° to 90°/sec.
- Tilt: range from –10° to +190° at speeds up to 60°/sec.
- Supports up to 256 programmable presets.
What networking and integration features are included?
It supports Ethernet (10/100/1000 Mbps), ONVIF Profile S, FLIR SDK/CGI, and standard protocols like HTTP, RTSP, RTP, and more, enabling smooth integration into various security systems.
How does it ensure cybersecurity?
The camera includes hardened features such as IEEE 802.1X, TLS/HTTPS, user authentication, firewall access control, and policy-enforced credential systems.
How are firmware updates managed?
Updates are handled through FLIR’s Discovery Network Assistant (DNA). For DX-Series, firmware version v1.7.0.20 is supported.
Can it integrate with UVMS (Unified Video Management System)?
Yes. The DX-624 model has been successfully tested with UVMS v8.0. Firmware was upgraded via DNA, allowing full video, pan/tilt control, and discovery—in a tested workflow.
Where can I find the user manual and support resources?
FLIR provides a full Installation & User Guide, along with a Quick Install Guide, datasheet, configuration and spec documents—all available on its support page.
What additional accessories are available?
Accessories include various mounting options such as corner mounts, pole mounts, gooseneck mounting arms with junction boxes, and more to suit diverse installation needs.
