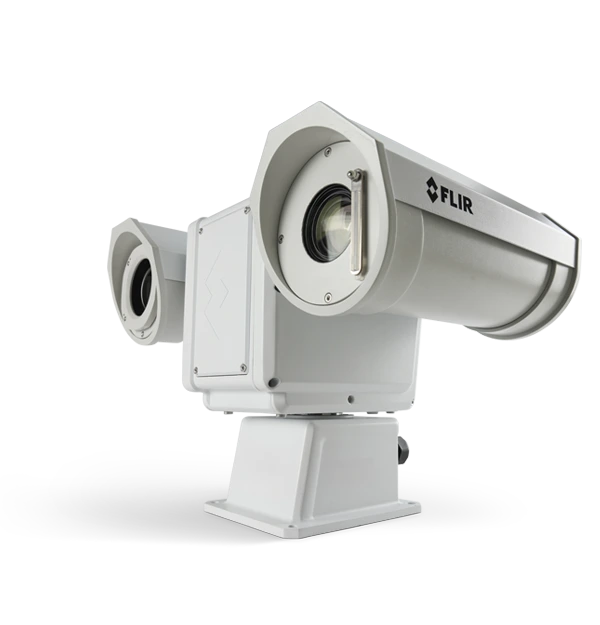

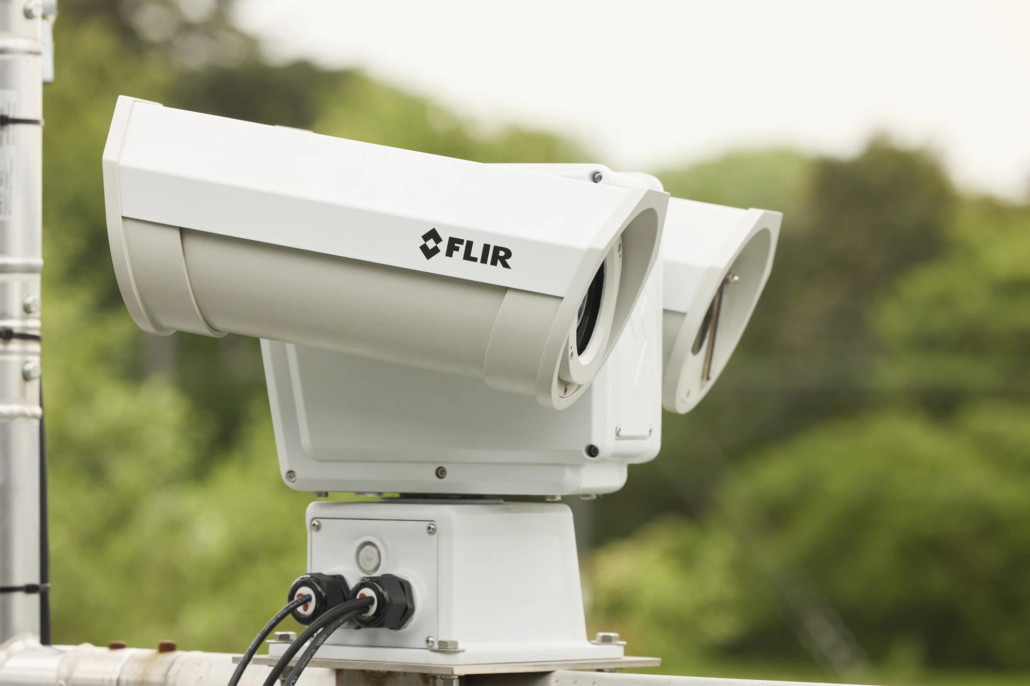

FLIR PT-Series AI SR
Model: PT-606 4K AI – 100 mm 25/30 Hz
Multi-Spectral Pan-Tilt-Zoom Camera for Fire Detection and Monitoring of Surface Temperature Thresholds
The FLIR PT-Series AI SR is our most advanced multi-sensor security camera, featuring a high-performance < 25 mK NETD uncooled thermal sensor with 640 × 512 resolution, a 4K visible-light imaging sensor with 25× optical zoom and outstanding low-light performance.
Enhanced with FLIR Fusion AI video analytics, the PT-Series AI SR offers reliable edge-based detection and classification of human and vehicle targets at extended ranges. Combined with FLIR Nexus®, the PT-Series AI SR allows you to seamlessly track objects or people and provides uninterrupted target tracking—even beyond a radar’s field of view.
The PT-Series AI SR integrates easily with other major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.
Avanced Multi-Sensor Imaging for All Conditions
The FLIR PT-Series AI-SR combines a high-sensitivity < 25 mK uncooled thermal sensor with up to 4× continuous zoom and a 4K visible-light camera featuring 25× optical zoom and superior low-light performance. This powerful dual-sensor design ensures clear, actionable imaging in complete darkness, bright sunlight, and challenging weather.
Edge AI Analytics for Smart Threat Detection
Equipped with FLIR Fusion AI video analytics, the PT-Series AI-SR delivers real-time object detection, classification of people and vehicles, right at the edge. This reduces false alarms, improves situational awareness, and enables faster, more accurate responses without relying on external processing.
Seamless Sensor Fusion with FLIR Nexus®
Fully integrated with FLIR Nexus®, the PT-Series AI-SR enables seamless coordination with FLIR radars and other thermal and visible cameras to maintain continuous tracking—even beyond a radar’s field of view. With high-speed, precision pan/tilt performance and 360° coverage, it’s ideal for wide-area surveillance and perimeter protection.
Compliance & Certifications
| Compliance and Certifications | FCC; CE Marked; RoHS; IP66; ONVIF Profile S, G, T, WEEE |
|---|
Cyber Security
| Security | ISO27001 certified IEEE 802.1x TLS/HTTPS User Authentication Access control via firewall User credentials with policy enforcement Digest Authentication |
|---|
Environmental
| De-Icing/Anti-Icing | MIL-STD-810F, Method 521.1; De-Icing |
|---|---|
| Humidity | 0 to 95% relative |
| IP Rating (dust & water ingress) | IP66 |
| Operating Temperature Range | -40°C to 70°C (-40°158°F) cold start |
| Shock | MIL-STD-810F “Transportation” |
| Storage Temperature Range | -55°C to 85°C (-67°F to 185°F) |
| Vibration | IEC 60068-2-27 |
General
| Dimensions (L x W x H) | 348× 467 × 326 mm (13.7, 18.4, 12.8 in) |
|---|---|
| Effective Resolution | 327,680 pixels (640 × 512) |
| Focus Range | Athermalized, Focus Free |
| Input Voltage | 24 V DC: 65 W (max w / o heaters) 195 W (max w heaters |
| Weight | ~37 lb (16.8 kg): configuration dependent |
| Zoom | Visual: 25x optical zoom |
Measurement & Analysis
| Programmable Presets | 256 |
|---|---|
| Thermal Sensitivity | < 25 mK at 25°C, F/10 |
PTZ
| Pan Angle/Speed | Continuous 360°; 0.1° to 60°/ sec |
|---|---|
| Tilt Angle – Speed | 90° to -90°; 0.1° to 30°/ sec |
System Integration
| Ethernet | Yes |
|---|---|
| External Analytics Compatible | Yes |
| Network APIs | Automatic Flat Field Correction (FFC) – Thermal and Temporal Triggers |
| Supported Protocols | IPv4, HTTP, HTTPS, UPnP, DNS,NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X |
Thermal Camera
| Array Format (Thermal) | 640 × 512, long-life, uncooled VOx microbolometer |
|---|---|
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC) – Thermal and Temporal Triggers |
| Spectral Range (Thermal) | 7.5 μm to 13.5 μm |
| Thermal AGC Region of Interest [ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
Visible Camera
| f-number | F1.6 to F4.8 |
|---|---|
| Focal Length | 6.5 mm (wide) to 162.5 mm (tele) |
| Lens Field of View | 59.0° (wide) to 2.36° (tele) |
| Low Light Sensitivity | Color: 0.28 lx (F1.6, AGC on, 1/30s) |
| Sensor Illumination | Back Light Compensation |
| Sensor type – Daylight | 4K (2160p), 1/1.8-type STARVIS II CMOS |
| WDR | 120 dB |
Video & Recording
| Video Compression | Two independent channels of H.265, H.264 & M-JPEG for each sensor |
|---|
FREQUENTLY ASKED QUESTIONS
What is the FLIR PT-Series AI SR?
It’s a short-range pan-tilt security camera combining ultra-sensitive thermal with 4K visible-light imaging and built-in edge AI, specially designed for high-stakes perimeter surveillance.
What sensors are included in the system?
It integrates a < 25 mK uncooled thermal sensor (640 × 512 resolution, up to 4× continuous zoom) and a 4K visible-light camera with 25× optical zoom and excellent low-light performance.
What analytics capabilities does it offer?
Equipped with FLIR Fusion AI, the camera performs real-time edge analytics—detecting and classifying humans and vehicles—reducing false alarms and offloading server-side processing.
Can it track targets across multiple cameras or devices?
Yes—thanks to FLIR’s Nexus® protocol. It enables seamless sensor fusion and hand-off between PT-Series AI SR and other FLIR units like radars and fixed cameras to maintain continuous tracking.
How does it perform in varied environmental or lighting conditions?
The dual-sensor design ensures reliable performance in complete darkness, bright sunlight, or poor weather. The thermal channel boasts exceptional sensitivity with NETD less than 25 mK.
What are the primary use cases or industries suited for it?
Ideal for commercial and critical infrastructure sectors—think oil & gas sites, power utilities, ports, business parks, and data centers.
What’s the key advantage of having Edge AI in this camera?
Edge AI enables autonomous, real-time detection and classification without needing backend servers—leading to quicker responses and lower deployment costs.
Why is Nexus® integration important?
Nexus enables intelligent coordination across sensor networks—letting devices share awareness and seamlessly pass tracking control, reducing gaps in coverage.
What’s the thermal sensitivity and why does it matter?
With a NETD less than 25 mK, the thermal sensor is highly sensitive—capable of detecting small temperature differences, which improves signal clarity and analytics accuracy.
How does it enhance overall security architecture?
The PT-Series AI SR serves as an intelligent node—bridging sensor networks, interactive VMS, and automated response systems—while reducing staffing and infrastructure complexity.
