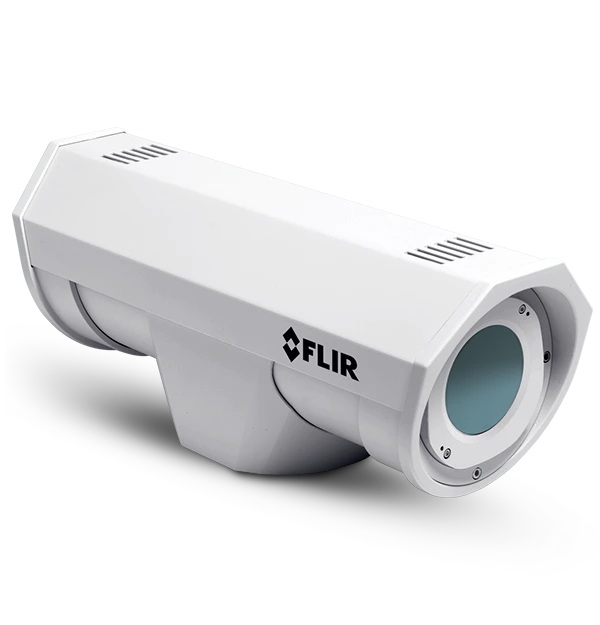

Triton F-Series ID
Model: FLIR F-606 ID, 640×480, 6.2° FOV, NTSC
Thermal Security Camera with Onboard Analytics
The FLIR Triton™ F-Series ID thermal security cameras set the new standard of perimeter protection for critical infrastructure. The Triton F-Series ID features best-in-class thermal imaging detail and high-performance onboard analytics for classifying human or vehicular intrusions. FLIR’s premium line offers five models with full 640 × 480 thermal resolution, longer detection ranges, and better analytics performance than ever before.
Reliable Onboard Analytics
Triton F-Series ID classifies human and vehicle intrusions, and hands-off targets to autonomous PTZ tracking cameras.
Crisp Thermal Image
Detailed thermal images improve threat detection and alarm assessment at greater distances
Plug-and-Play
The camera is fully certified by third party video management systems, as well as FLIR United VMS.
Triton F-Series ID General Specifications
| Detector Type | Long-Life, Uncooled VOx Microbolometer |
|---|---|
| Dimensions (L x W x H) | 18.1″ × 5.5″ × 6.3″ (460 × 140 × 160 mm) |
| Input Voltage | 24 VDC (21-30 VDC), 24 VAC (21-30 VAC) |
| Model | F-608 ID |
| Power Consumption | Uncooled: 24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters) 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters) |
| Thermal Effective Resolution | 307200.0 |
| Thermal Pixel Pitch | 17µm |
| Thermal Spectral Range | 7.5 µm to 13.5 µm |
| Thermal Zoom | 4x continuous E-Zoom |
| Weight | 9.55lb (4.4kg) |
Environmental
| De-Icing/Anti-Icing | MIL-STD-810F, Method 521.1; – De-Icing of 3/6mm pending model |
|---|---|
| Humidity | 0-95% relative |
| IP Rating (dust & water ingress) | IP66 |
| Operating Temperature Range | -40°C to 70°C / -40° F to 158°F cold start |
| Shock | MIL-STD-810F “Transportation” |
| Storage Temperature Range | -55° to 85°C / -67° F to 185° |
| Vibration | IEC 60068-2-27 |
Sensor & Optical
| Field of View | 6.2°×5° |
|---|
System Integration
| Ethernet | Yes |
|---|---|
| Network APIs | FLIR SDK FLIR CGI ONVIF Profile S |
Thermal Camera
| Thermal Frame Rate | NTSC: 30 Hz; PAL: 25 Hz / 8.3 Hz |
|---|
Video & Recording
| Composite Video NTSC or PAL | Yes: Hybrid IP & Analog |
|---|---|
| Video Compression | Two independent channels of H.264 & M-JPE |
| Video Image Uniformity Optimization | Automatic Flat Field Correction (FFC) – Thermal and Temporal Triggers |
| Video Streaming Resolution | QVGA to VGA |
| Video Thermal AGC Modes | Auto AGC, Dynamic Detail Enhancement (DDE), Sensitivity, Brightness, Contrast, Sharpne |
| Video Thermal AGC Region of Interest [ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
Visible Camera
| Array format | 640 × 480 |
|---|---|
| f-number | 1.6 |
| Focal Length | 100 mm |
DOCUMENTS
FREQUENTLY ASKED QUESTIONS
What is the FLIR Triton F-Series ID?
It’s a high-performance fixed thermal security camera (640×480 resolution) tailored for perimeter protection and critical infrastructure surveillance. Known for its excellent image clarity and class-leading onboard analytics.
What analytics features are built into the camera?
It includes onboard classification for human and vehicle intrusions, with the ability to hand off detected targets to autonomous PTZ cameras, reducing false alarms and improving response times.
What kind of thermal imaging specs does it support?
Every model in the F-Series ID lineup offers 640 × 480 (VGA) thermal resolution using a long-life, uncooled VOx microbolometer sensor. Frame rates are up to 30 Hz (NTSC) or 25 Hz (PAL), and include a 4× continuous electronic zoom.
How does it deliver video output?
The camera provides both analog and IP (hybrid) streaming. It supports H.264 and M-JPEG encoding with dual independent video streams—making it layout-compatible with legacy and modern VMS systems.
What is the detection range?
Detection range varies by model and lens configuration, but it can detect humans and vehicles hundreds of metres away.
What are its environmental and durability ratings?
The Triton F-Series ID is ruggedized for outdoor use—IP66 rated for dust/water resistance, MIL-STD-810F compliant for shock, vibration, and de-icing, and operates reliably between –40 °C to +70 °C.
What are typical use cases for this camera?
Ideal for monitoring critical infrastructure such as airports, utilities, perimeter zones, and industrial sites where reliable, automated thermal detection is essential.
What are its power requirements?
The camera supports 24 VAC or 24 VDC (21–30 V range). Power consumption peaks at:
- Without heaters: ~85 VA (24 VAC) or ~65 W (24 VDC)
- With heaters: ~215 VA (24 VAC) or ~195 W (24 VDC)
How compact and light is it?
Each unit is approximately 9.55 lb (4.4 kg) and measures 18.1″ × 5.5″ × 6.3″ (460 × 140 × 160 mm)—easy to mount while maintaining a solid build.
What warranties and cybersecurity features does it offer?
The Triton F-Series ID comes with a 3-year system warranty and a 10-year thermal sensor warranty. On the security side, it supports IEEE 802.1X, TLS/HTTPS, and user authentication for secure network access.
