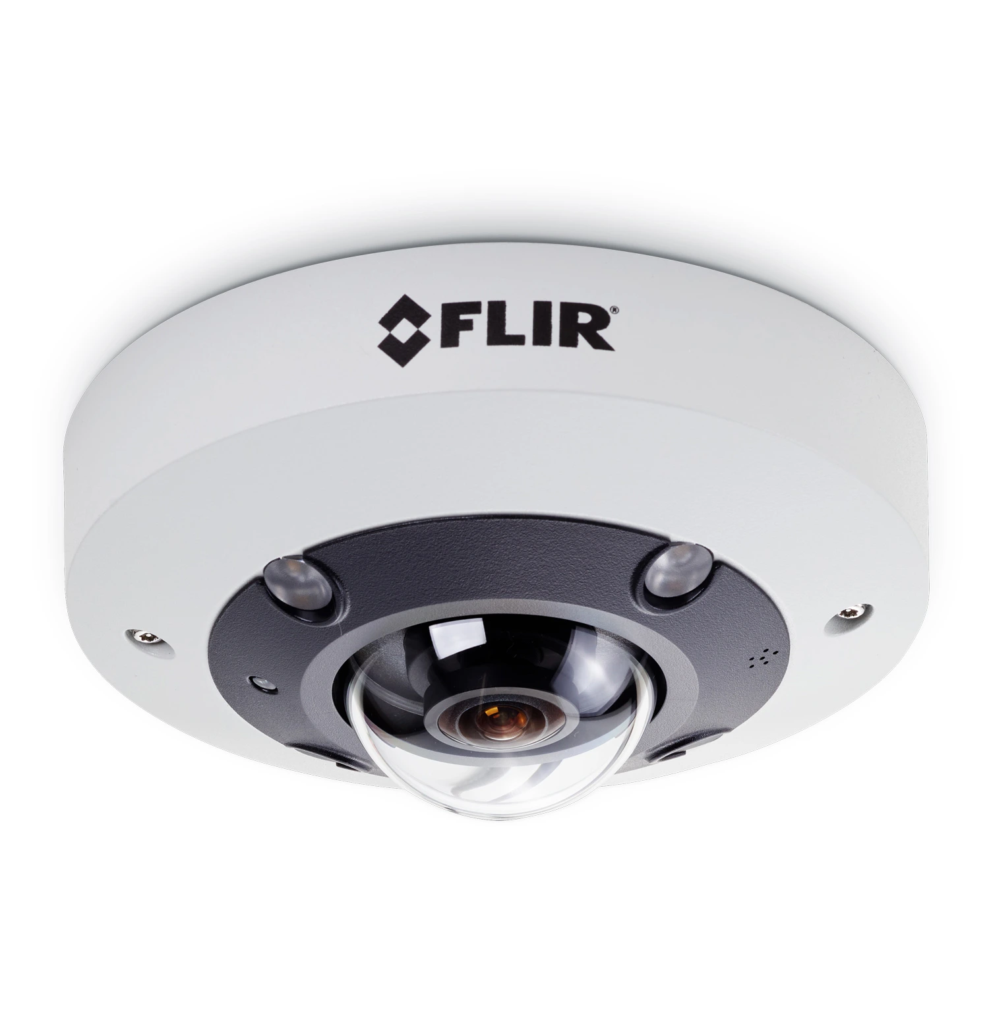

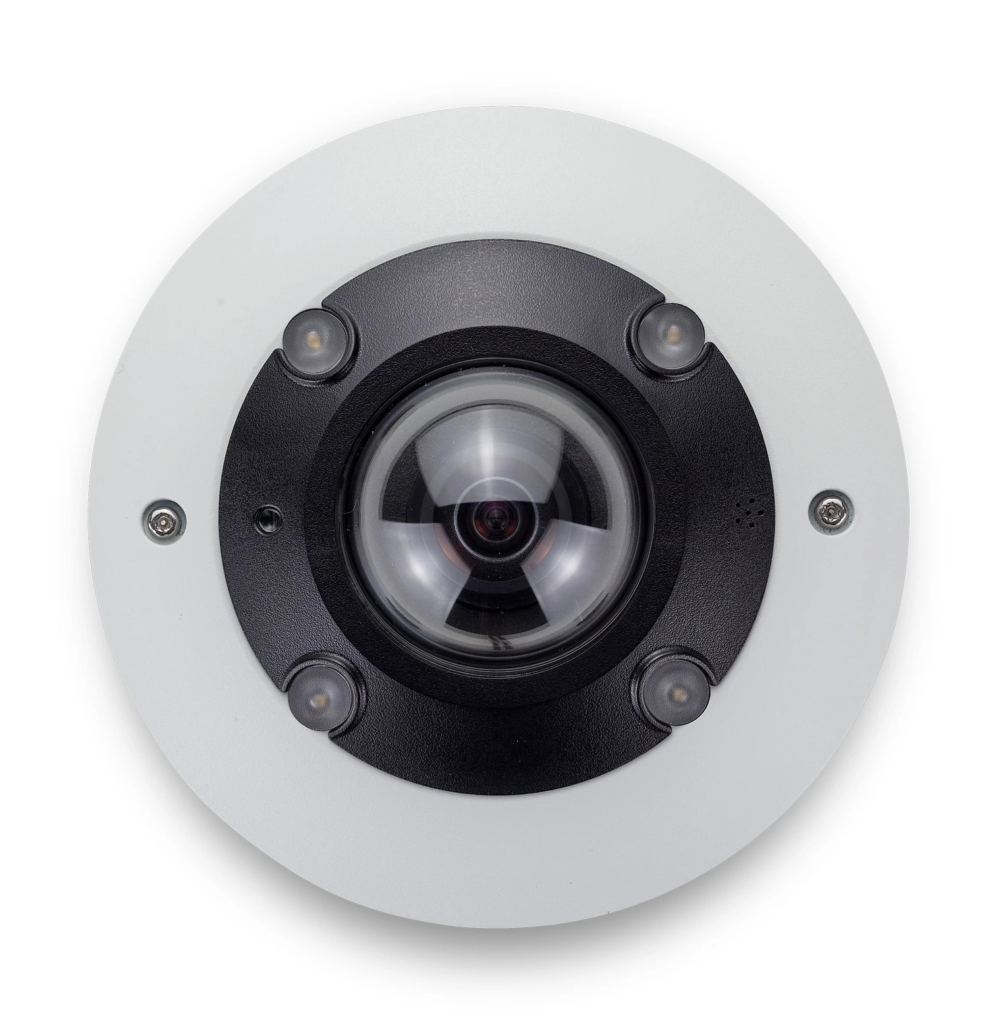

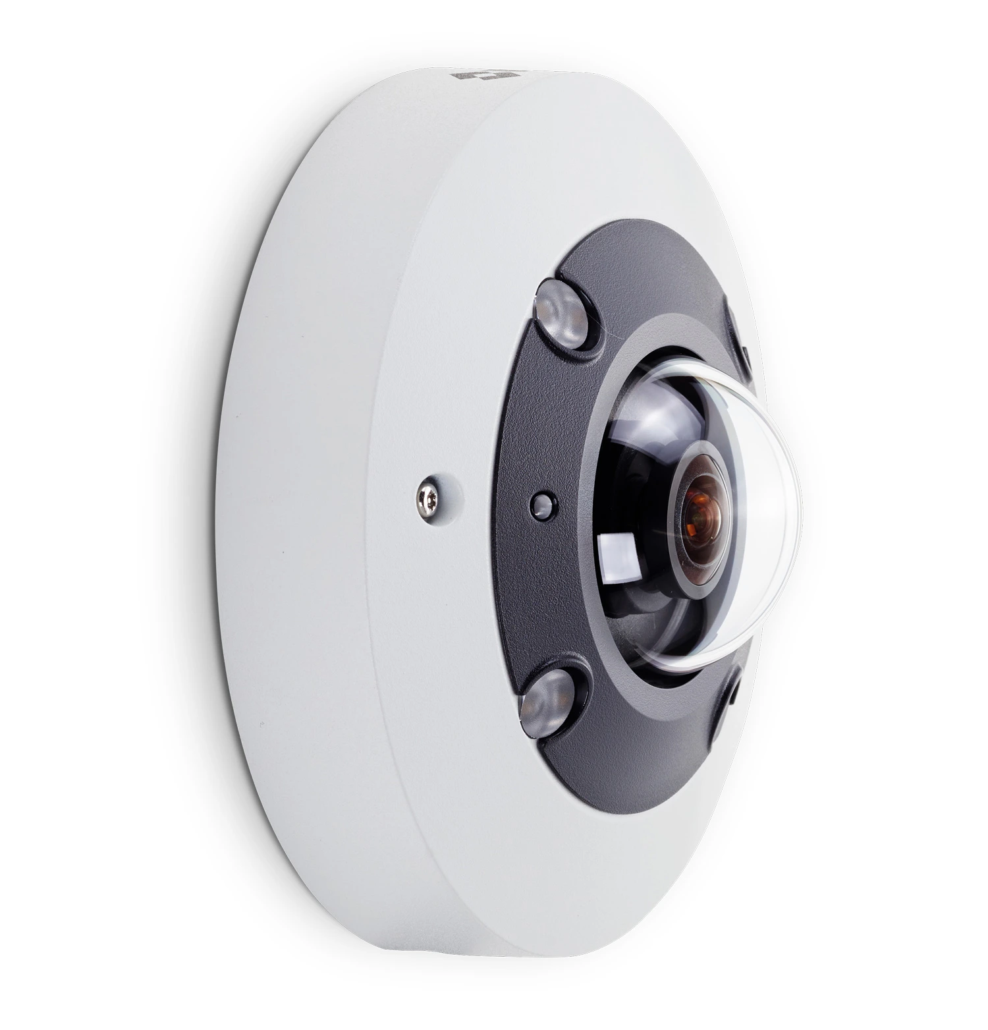

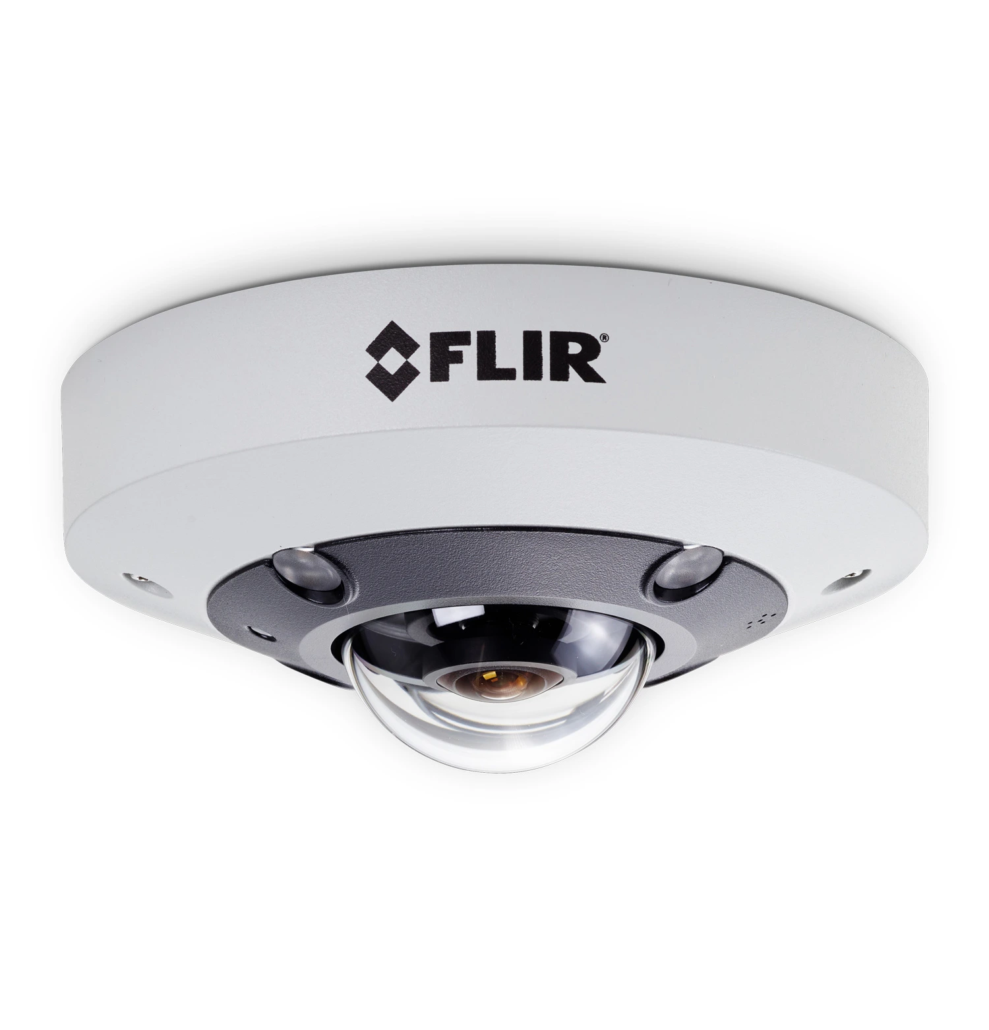

FLIR Quasar Hemispheric Mini-Dome AI
12 MP Camera with Edge AI Video Analytics
The FLIR Quasar 12 MP hemispheric mini dome AI camera uses onboard video analytics (VA) powered by advanced artificial intelligence (AI) to provide situational awareness in the most demanding environments where evidential and forensic video is required.
With an indoor/outdoor vandal-resistant housing, two-way audio, IR LED illumination, and an I/O interface, the fully featured Quasar 12 MP hemispheric mini dome AI.
Wide range of applications such as travel/transport, commercial buildings, financial institutions, smart cities, entertainment, property management, government buildings (non-defense), educational facilities, healthcare, and retail.
Advanced Artificial Intelligence Video Analytics
- Classified Object Type: Person/Vehicle
- Analytics Events Based on AI Engine & Events: Intrusion-Region/Tripwire, Object Counting, Loitering, Stopped Vehicle
- Analytics Events Based on VMD Engine & Events: Abandoned Object, Object Removal, Wrong Direction-Corridor, Camera Sabotage
- Business Intelligence: People Counting on Latitude 9.2.1 and Above
Advanced situational awareness
The camera supports user-customized views with digital presets independent of complete 360° view recording, providing full-coverage, panoramic video surveillance.
Ease of Installation
FLIR accessory/mounting ecosystem, and the ability to operate more cameras on the same server all contribute to a lower total cost of ownership. It offers seamless integration with a wide range of video management systems, including United VMS, which brings indoor and outdoor surveillance and perimeter intrusion detection cameras together as part of an end-to-end security solution.
FLIR Quasar Hemispheric Mini-Dome AI Specifications
| Automatic Electronic Shutter [AES] | Auto shutter + max gain off |
|---|---|
| Day/Night Mode | Automatically removable IR-cut filter |
| Digital Slow Shutter [DSS] | 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| Dimensions | 130 mm × 57.8 mm (5.11 in × 2.27 in) |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 12 VDC, 24 VAC, PoE+ IEEE 802.3at |
| Power Consumption | PoE IEEE802.3af: 9.12 W DC 12 V: 9.9 W |
| Weight | 565 g (1.25 lb) |
FREQUENTLY ASKED QUESTIONS
What makes the FLIR Quasar Hemispheric Mini-Dome AI unique?
The Quasar Hemispheric Mini-Dome AI provides 360° panoramic coverage from a single camera, reducing blind spots and eliminating the need for multiple cameras in large open areas.
Does the camera include built-in AI analytics?
Yes. It features AI-driven video analytics such as people counting, object detection, and behavior recognition, which enhance situational awareness and reduce false alarms.
What environments is the Hemispheric Mini-Dome best suited for?
This model is ideal for airports, retail spaces, city surveillance, transportation hubs, and public venues, where wide coverage and intelligent monitoring are critical.
How does the camera perform in low-light or night conditions?
The Quasar Hemispheric Mini-Dome AI is equipped with superior low-light imaging and IR illumination, ensuring clear visibility in challenging lighting or complete darkness.
Is the camera durable for outdoor installation?
Yes. It is built with weatherproof (IP66) and vandal-resistant (IK10) housing, making it reliable in both indoor and outdoor environments.
