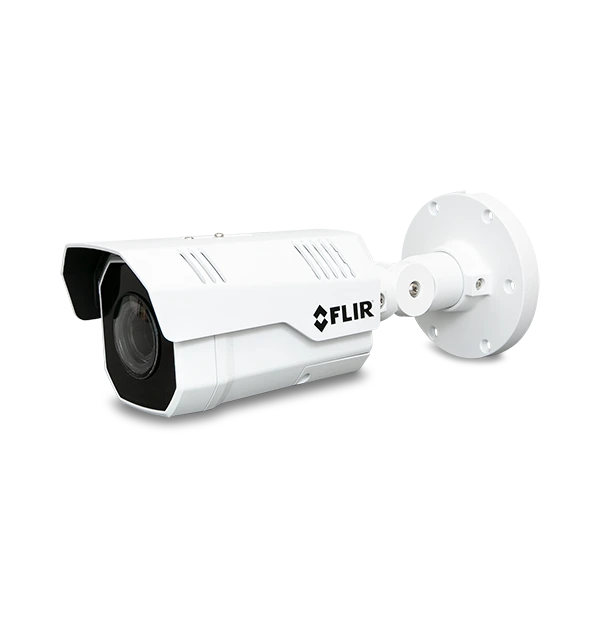

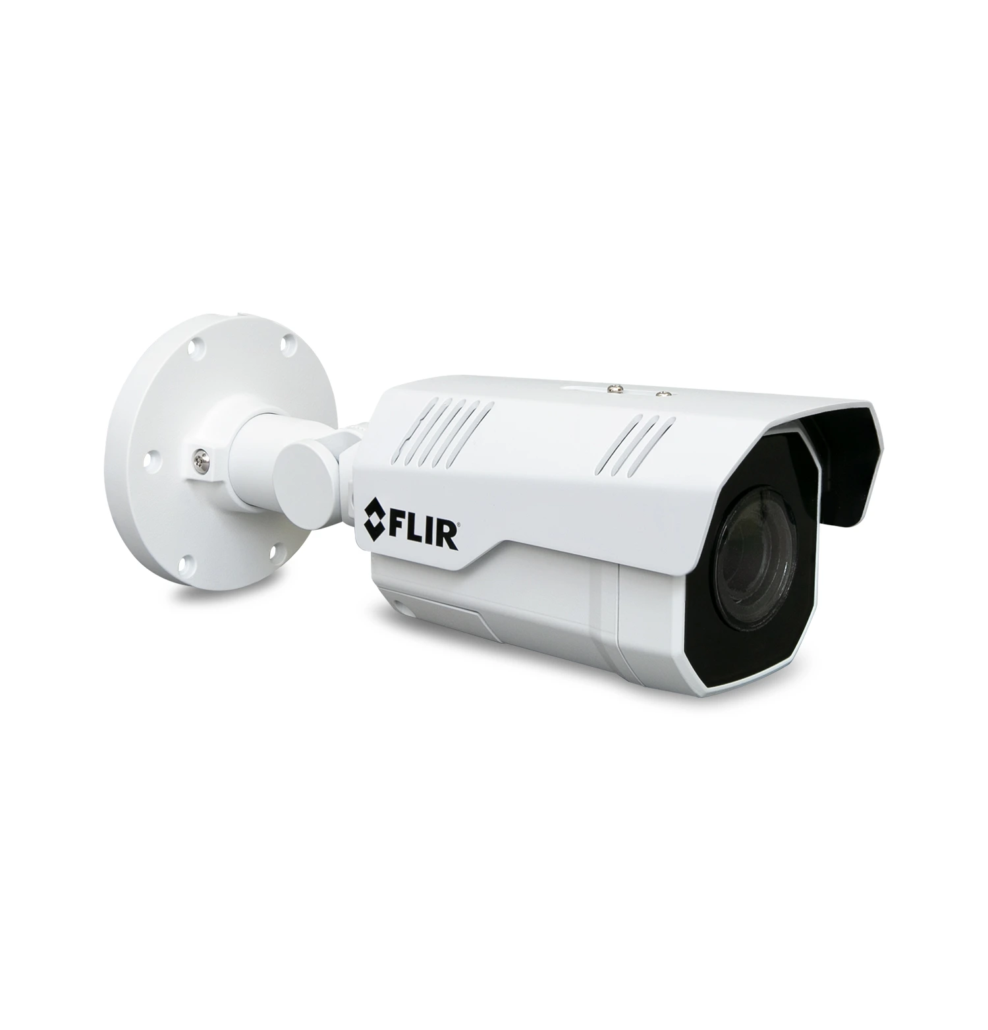

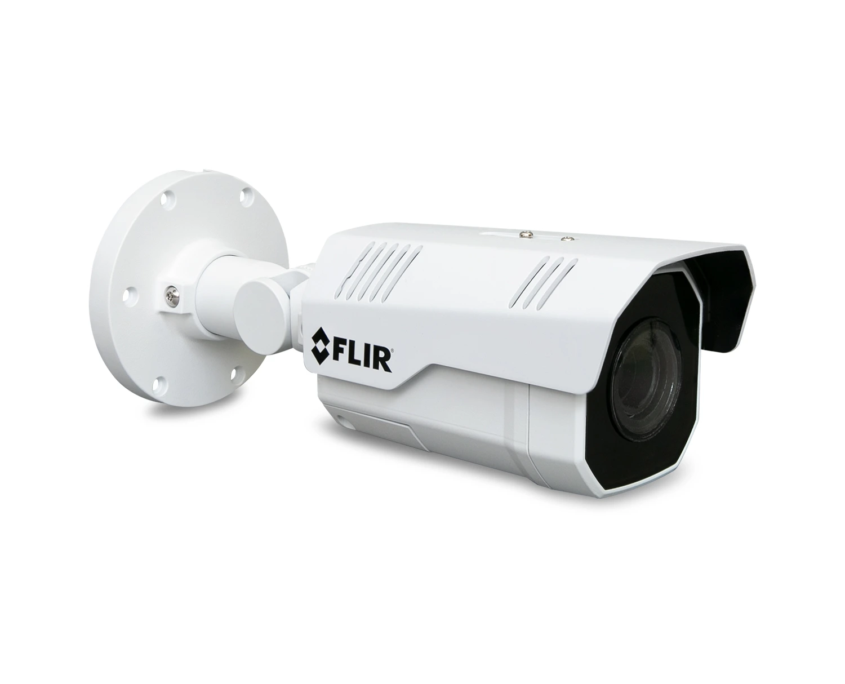

FLIR Quasar Premium Bullet AI
Model: Quasar 4K UHD, 22.3° (Tele) 50° (Wide) FOV
5 MP and 4K Ultra HD Cameras with FLIR Edge AI Video Analytics
Designed for intelligent monitoring of outdoor sites in the most demanding environments, the Quasar Premium Bullet AI captures critical evidential and forensic video in 5 MP or 4K Ultra HD. This camera integrates FLIR Deep Neural Network (DNN) based Edge AI video analytics to detect and accurately classify humans and vehicles, while object geo-tracking is enabled using FLIR Nexus™.The Quasar Premium Bullet AI camera delivers superior image quality and IR-illumination for exceptional performance at commercial and critical infrastructure sites, remote facilities, or any large area requiring close monitoring.
Compatibility with FLIR accessories as well as the ability to operate more cameras on the same network both contribute to a lower total cost of ownership. The camera also integrates seamlessly with a wide range of video management systems, including United VMS, providing an open, true end-to-end solution for multi-layer security.
Stands Up to Harsh Environments
Vandal-protected and ruggedized for extreme temperature and high salt environments.
Detects and Classifies With High Accuracy
Robust FLIR Edge AI video analytics minimize nuisance alarms and false positives; FLIR Nexus enables PTZ hand-off for object geolocation and tracking.
Offers Superior Image Quality
Low light sensitivity and wide dynamic range provide optimal light balance for high quality images.
FLIR Quasar Premium Bullet AI General Specifications
| Automatic Electronic Shutter [AES] | 1/3–1/30000 (auto) |
|---|---|
| Compression | Enhanced H.265 main profile + enhanced H.264 Main/high/baseline profile + MJPEG |
| Day/Night Mode | Yes, support for Enhanced Low Light performanc |
| Digital Slow Shutter [DSS] | 1/2–1/30 (NTSC) 1/2–1/25 (PAL) |
| Dimensions | 358 × 79 × 89 mm (14.1 × 3.1 × 3.5 in) |
| Enclosure | Indoor/outdoor: IK10 rated vandal IP67 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 24 VAC, 12 VDC, PoE+ 802.3at |
| Power Connection | PoE: RJ45 12 VDC / 24 VAC: terminal block |
| Power Consumption | With Heater OFF and IR ON 12 VDC / 16.6 W 24 VAC / 14.6 W PoE+ / 15 W With Heater ON and IR OFF 12 VDC / 17.9 W 24 VAC / 15.6 W PoE+ / 16.3 W |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 130 dB on 15 fps 120 dB on 30 fps |
| Tamper Detection | Yes |
| Unit Weight | 2.15 kg (4.74 lbs) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
Compliance & Certifications
| International | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM, WEEE, BIS, UKCA, ICES-003 |
|---|---|
| USA | UL, FCC Part 15 (subpart B, class A) |
Cyber Security
| AI Video Analytics | Yes |
|---|---|
| Security | Password protection, password policy enforcement, IP address filtering, IEEE 802.1X network access control, digest authentication, CA & self-signed certificates, protect from failed log-in service, firewall |
Environmental
| Humidity | 0%–95% |
|---|---|
| Operating Temperature | IR ON: -40°C to 50°C (-40°F to 122°F) IR OFF: -40°C to 60°C (-40°F to 140°F) Cold Start: -40°C (-40°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F |
| Shock & Vibration | ISTA 3A |
Measurement & Analysis
| Automatic Gain Control | Auto |
|---|
Other
| Defog | Yes. Heater ring |
|---|---|
| Salt Tolerant | NEMA 4X |
PTZ
| Pan_Tilt_Spin | 350° / ±7.5° ~ -90° / 350° |
|---|
System Integration
| Angle of Illumination | 60° |
|---|---|
| Bi-directional Audio | 1 Audio line input, G.711 a/µ-law, AAC support + 1 audio line output |
| Distance | 10/100, 1000 IEEE 802.3, auto sensing 1 × RJ45 |
| Input | 1 dry alarm contact |
| LED Type | High efficiency SMD |
| Network Protocol | IPv4, HTTP, HTTPS, UPnP, DNS,NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, ONVIF Profile G / T / S |
| Output | 1 relay contact |
| Peak Emission Wavelength [nm] | 850 nm |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Firefox, Chrome, Edge |
Video & Recording
| Maximum Performance | H.264/H.265 30/25 fps @ 5 MP + H.264/H.265 30/25 fps or MJPEG 15 fps @ 1080p |
|---|---|
| Rate Control | CBR, CVBR, MJPEG |
| Resolution Range | Scalable from D1 to 4K |
| SD Card Recording1 | MicroSDXC up to 2 TB, SD Bus Mode UHS I (SD card not included) |
| Video Motion Detection | Yes |
Visible Camera
| Backlight Compensation | On/Off |
|---|---|
| Bandwidth | Configurable between 64 Kbps and 20 Mbps |
| Image Sensor | 1/1.8-in CMOS |
| Lens Type | Varifocal 9–20 mm, 50°–22.3° HFOV, f/1.6, D/N, motorized autofocus/auto-iris, P-iris lens |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D and 2D |
| Sensitivity | 0.04 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Sensor Resolution | 3840 × 2160 |
| Signal to Noise Ratio | >50 dB |
| White Balance | Auto/Manual |
FREQUENTLY ASKED QUESTIONS
What is the FLIR Quasar Premium Bullet AI camera designed for?
The Quasar Premium Bullet AI is designed for wide-area surveillance in critical infrastructure, city security, transportation, and enterprise applications, offering high-performance imaging with built-in AI analytics.
What video resolutions does the Quasar Premium Bullet AI support?
It supports up to 4K UHD resolution (3840 × 2160) at high frame rates, providing ultra-clear images for identifying details in complex environments.
Does the camera feature built-in AI analytics?
Yes, it has advanced AI-based video analytics for object detection, classification (e.g., people, vehicles), and real-time event alerts, reducing false alarms and improving situational awareness.
How does the Quasar Premium Bullet AI perform in low-light conditions?
It features low-light imaging, wide dynamic range (WDR), and IR illumination, ensuring clear images in challenging lighting environments, including near-darkness.
Is the Quasar Premium Bullet AI weatherproof?
Yes, it is IP67-rated and IK10 impact-resistant, making it suitable for harsh outdoor conditions and vandal-prone areas.
What compression formats does the camera support?
The camera supports H.264, H.265, and MJPEG compression, reducing storage and bandwidth usage while maintaining image quality.
Can the Quasar Premium Bullet AI integrate with third-party VMS platforms?
Yes, it is ONVIF compliant and integrates with major video management systems (VMS), ensuring flexibility in deployment.
Does the camera support cybersecurity features?
Yes, it includes hardened cybersecurity protections such as secure boot, encrypted video streaming, and role-based user access controls.
What power options are available?
The camera supports Power over Ethernet (PoE) and traditional 24V AC/12V DC power, simplifying installation in different environments.
What are the storage options?
The Quasar Premium Bullet AI has edge storage with microSD card support and can record directly to network storage (NAS), providing redundancy in case of network interruptions.
