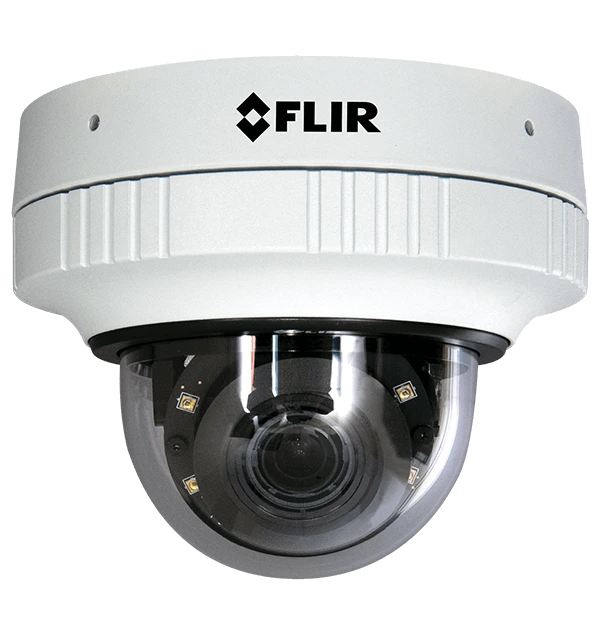

FLIR Quasar Premium Mini-Dome
Model: CM-6408, 3864×2180, 4K UHD
5MP HD and 4K UHD Cameras
The FLIR Quasar premium mini-dome camera was designed to provide situational awareness in the most demanding environments, where evidential and forensic video is required.
It is offered in a 5MP HD and 4k UHD variant, delivering superior image quality and IR-Illumination for exceptional performance using low bandwidth.
Ideal for critical infrastructure sites, remote facilities, or any large requiring close monitoring, the Quasar premium mini-dome is a discreet surveillance option that is NDAA-compliant and utilises high-end cybersecurity safeguards.
Ease of installation, FLIR accessory/mounting ecosystem, and the ability to operate more cameras on the same server all contribute to a lower total cost of ownership.
It offers seamless integration with a wide range of video management systems, including United VMS, which brings indoor and outdoor surveillance and perimeter intrusion detection cameras together as part of an end-to-end security solution.
Quasar Premium Mini-Dome – Datasheet
Purpose-Built For Harsh Environments
Rugged design extends product life, minimises corrective maintenance, and optimizes total cost of ownership.
Versatile, Intuitive, and Secure
Install and set up camera with United VMS within minutes to minimise installation costs.
Superior Image Quality
Optimal performance for surveillance and forensic reporting.
General Specifications
| Automatic Electronic Shutter [AES] | 1/1 to 1/32,000 (auto) |
|---|---|
| Compression | Enhanced H.265 Main Profile + Enhanced H.264 Main/High/Baseline Profile + MJPEG |
| Day/Night Mode | Yes |
| Digital Slow Shutter [DSS] | 1/1(1)~1/60(50) NTSC(PAL) |
| Dimensions | 161×128.6 mm (6.3 x 5 in.) |
| Enclosure | Indoor/Outdoor: IK10 rated vandal IP66 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Power Connection | RJ45 & 24VAC |
| Power Consumption | 12.5W with heater and IR |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 130dB |
| Tamper Detection | Yes |
| Warranty | According to FLIR RMA Policy and Process Notice document |
FREQUENTLY ASKED QUESTIONS
What is the FLIR Quasar Premium Mini-Dome used for?
The Quasar Premium Mini-Dome is designed for professional video surveillance applications that require high-quality imaging, wide dynamic range, and reliable low-light performance in a compact dome form factor.
What resolutions are available on the FLIR Quasar Premium Mini-Dome?
The camera supports multiple high-definition resolutions, including up to 4K Ultra HD, ensuring sharp image details for forensic video analysis.
Does the Quasar Premium Mini-Dome perform well in low-light conditions?
Yes. It features advanced low-light technology and infrared (IR) illumination to capture clear video in challenging lighting, including near darkness.
Is the camera suitable for outdoor installations?
Yes. The FLIR Quasar Premium Mini-Dome has weather-resistant (IP66) and impact-resistant (IK10) ratings, making it ideal for both indoor and outdoor use, even in harsh environments.
Does the Quasar Premium Mini-Dome support intelligent analytics?
Yes. It includes advanced AI-based video analytics, such as object detection, classification, and behavior analysis, to improve situational awareness and reduce false alarms.
