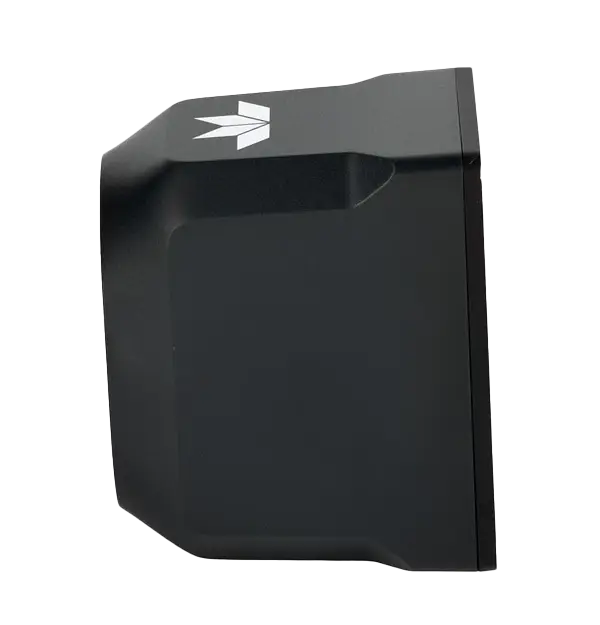

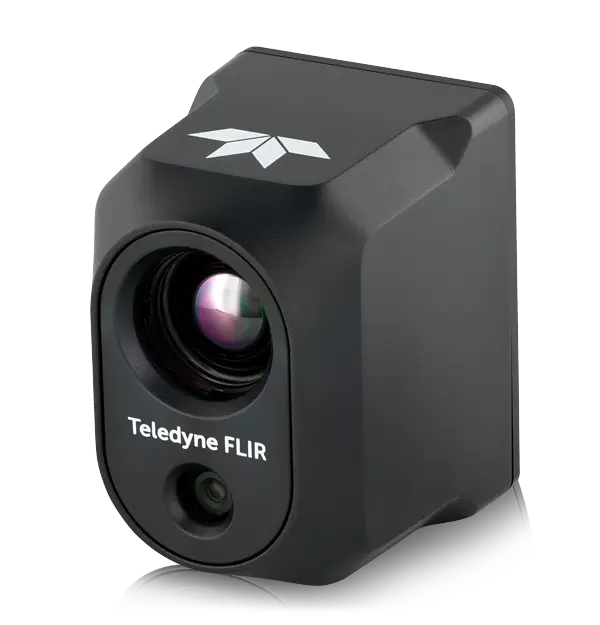

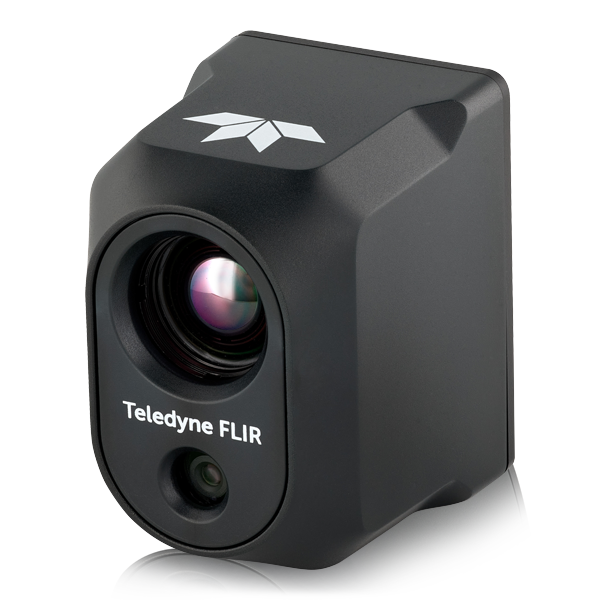

Hadron 640
High performance, dual thermal and visible oem camera module
The NDAA compliant and ITAR free Hadron 640 series pairs a 64 MP visible camera with a performance-leading 640×512 resolution radiometric Boson or Boson+ thermal camera in a single easy-to-integrate module.

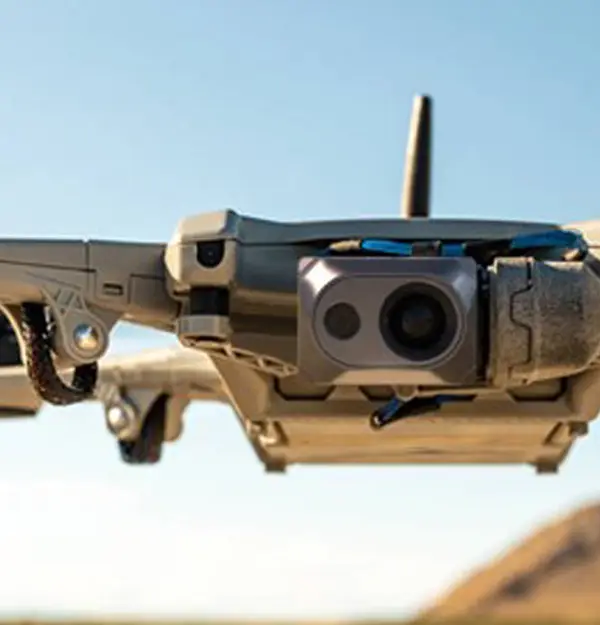

With a size, weight, and power (SWaP) optimised design, it is an ideal dual sensor payload for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), robotic platforms, and emerging AI applications using Teledyne FLIR Prism software.
Hadron 640 models share mechanical and electrical interfaces simplifying design. Compatible with Teledyne FLIR’s Prism AI detection, tracking, and classification models and Prism ISP libraries for super-resolution, turbulence mitigation, contrast enhancement, and more, Hadron 640 series enables effective AI-based applications.
With drivers available for market leading processors from NVIDIA, Qualcomm, and more plus industry-leading integration support, Hadron 640 series minimises development cost and time to market.
Evaluate Prism with the Hadron 640 series using the Prism Development Kit for Qualcomm RB5 today.
INDUSTRY-LEADING THERMAL AND VISIBLE CAMERA PERFORMANCE
Collect high-speed, dual VGA radiometric thermal and HD visible imagery in all light conditions.
- AI-ready with Teledyne FLIR Prism AI and ISP.
- 64MP visible camera resolution.
- Available radiometric, 640×512 resolution Boson+ provides industry.
leading NEDT of ≤20 mK. - Flexible dual 60 Hz video output via USB or MIPI.
BUILT FOR INTEGRATORS
Reduce development cost and time to market with solution from a single, reliable supplier.
- ITAR free and classified under US Department of Commerce jurisdiction as ECCN 6A003.b.4.b.
- Drivers and sample code available for NVIDIA Jetson Nano, Qualcomm RB5, and more.
- Highly qualified, technical services team available to support integration.
- Evaluate capabilities with Prism Development Kit for Qualcomm RB5.
SIZE, WEIGHT, AND POWER OPTIMIZED DESIGN
Optimise design and operation time with compact, lightweight, and low-power module.
- Low, steady state power consumption at 1.8W.
- IP54-rated dust and water protection.
- Lightweight 56 g enables longer flight time and extends battery life.
- Shared mechanical and electrical interface across all models.
.
DOCUMENTS
FREQUENTLY ASKED QUESTIONS
What are the key features of the Hadron 640R?
The Hadron 640R stands out for its dual thermal and visible camera performance, featuring a 64MP visible camera and a Boson infrared camera with radiometric capabilities.
It supports temperature measurement for every pixel, offers MIPI and USB3 outputs, and delivers up to 60Hz thermal framerate for high-quality data capture.
Why was the Hadron 640R developed?
It was designed for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), and robotic platforms, especially where battery life and runtime are critical. Its compact form factor and flexible output formats make it ideal for AI-ready applications.
Does the Hadron 640R measure temperature, and how accurate is it?
Yes, it’s a radiometric thermal camera system capable of measuring the temperature of every pixel. The typical accuracy is ±5°C, with a range from 0°C to 100°C. However, accuracy can vary in dynamic outdoor environments and may require operator expertise to adjust for environmental factors.
Why is thermal imaging useful on drones?
Thermal imaging enables drones to detect infrared energy, which is invisible to the naked eye. This capability is crucial for applications like industrial inspection, agriculture, defense, and search and rescue, allowing visibility through darkness, smoke, fog, and glare.
What integration support is available for Hadron 640R?
Teledyne FLIR provides out-of-the-box integration with support for processors from NVIDIA, Qualcomm, and others. The module is IP54-rated for dust and water resistance and comes with industry-leading support and service.
