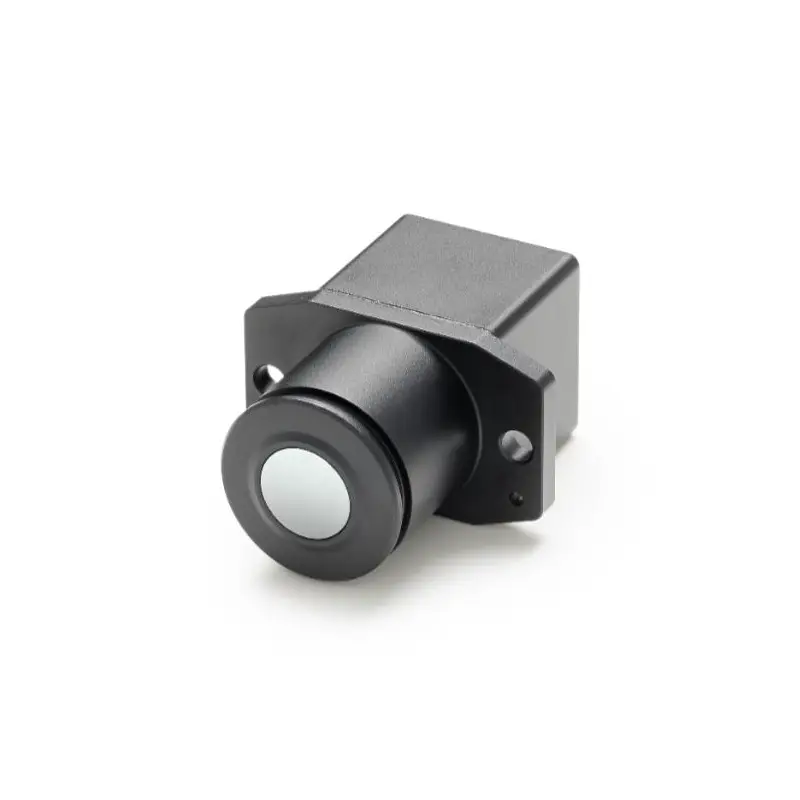

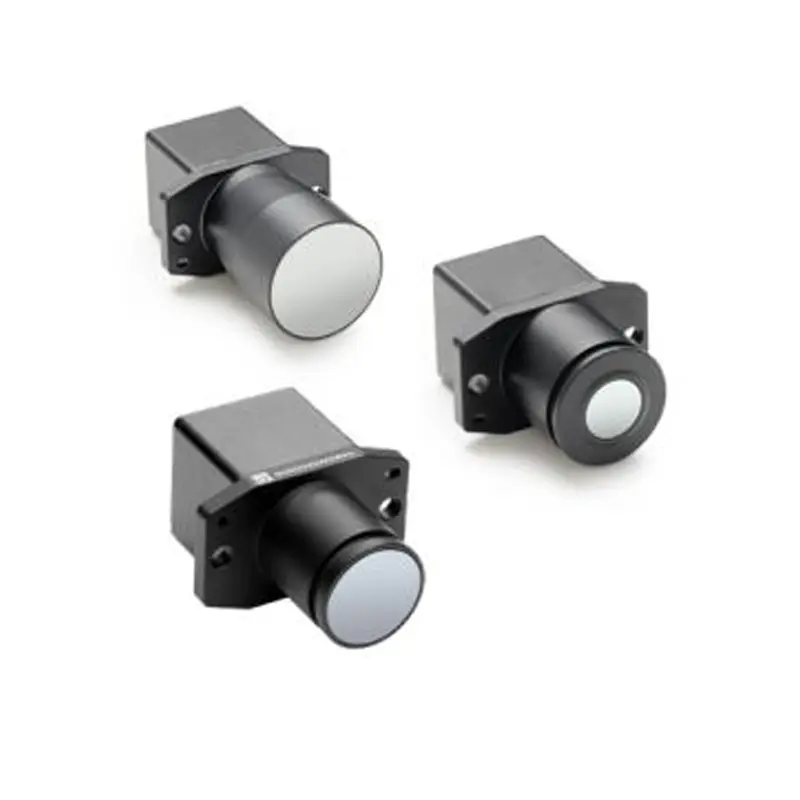

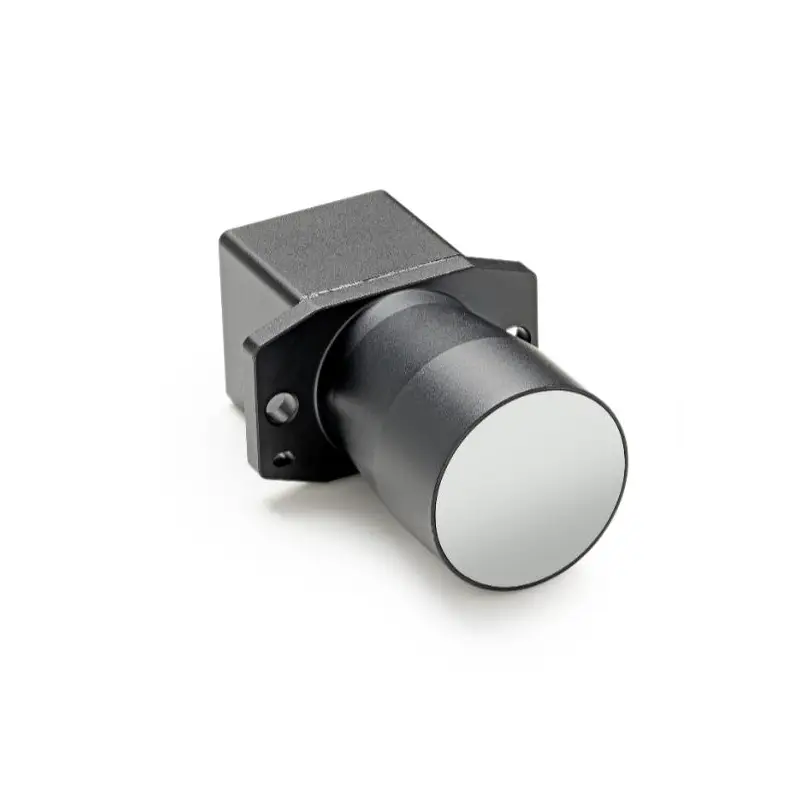

Tura
High Performance, Automotive-Qualified Thermal Camera
Build Safer, Smarter Vehicles with Thermal Cameras to Meet AEB Standards
Tura is the world’s first Automotive Safety Integrity Level (ASIL) B thermal longwave infrared (LWIR) camera developed in accordance with ISO26262 processes.
It offers high 640×512 resolution in a compact, fully enclosed IP6K9K package designed for autonomous applications, including advanced driver assistance systems (ADAS) and autonomous vehicles.
It extends perception several times beyond vehicle headlights in complete darkness and through fog, smoke, sun, and headlight glare.
IMPROVE PEDESTRIAN
AUTOMATIC EMERGENCY
BRAKING SYSTEMS
Passive thermal sensor detects and classifies pedestrians, animals, and roadway objects, regardless of lighting conditions.
• Lightest, smallest, and most sensitive 640×512-resolution, automotive-qualified thermal camera.
• Shutterless design maximises reliability, uptime, power draw, and affordability.
• Heated IP6K9K enclosure operates in all weather conditions.
• AEC-Q components (including sensor) maximise reliability.
• See through darkness, most fog, smoke, sun, and headlight glare.
• Detect and classify pedestrians at 200 meters or more.
• State-of-the-art image signal pipeline tuned for AI processing.
• Active alignment ensures focus and performance across the entire field of view.
FIRST ISO26262-DEVELOPED
ASIL-B THERMAL CAMERA FOR
AUTONOMY
Designed in accordance with ASPICE and ISO26262 for ASIL-B functional safety applications.
• Lightest, smallest, and most sensitive 640×512-resolution, automotive-qualified thermal camera.
• Shutterless design maximises reliability, uptime, power draw, and affordability.
• Heated IP6K9K enclosure operates in all weather conditions.
• AEC-Q components (including sensor) maximise reliability.
BUILT FOR INTEGRATORS BY THE
WORLD-LEADER IN THERMAL
CAMERA PRODUCTION
Reduce cost and risk with a single, reliable supplier that has produced more than one million automotive qualified thermal sensors.
• GMSL and FPD-Link interfaces.
• Dual-use and classified under US Department of Commerce jurisdiction as ECCN 6A003.b.4.b or 6A993.a (bidirectional authentication).
• Experienced technical services team supports integration.
• Compatible with annotated training data and Prism AI perception software.
Tura Specifications
| Resolution | 640 x 512 |
|---|---|
| Pixel Pitch | 17 µm |
| Spectral Band | 7.5 – 13.5 µm |
| Sensitivity/NEdT | <25 mK @ 25°C |
| Frame Rate | 30 Hz |
| Zoom | 4x continuous E-Zoom |
| Radiometry | No |
| Field of View | 69°(H) × 56°(V) |
| Focal Length | 9mm |
| f-number | f/1.1 |
| Dimensions (L x W x H) | 314 x 233 x 124 mm (12.31 × 9.17 × 4.88 in) |
| Weight | 5.1kg (11.3 lbs.) |
| Input Voltage | 12 VDC: 48 W Heaters enabled, all other inputs: 70 W, Nominal: 15 W Heaters enabled |
| Composite Video NTSC or PAL | Hybrid system with IP & analog video |
| Analytics Features | Region Entrance/Intrusion Detection, Crossover/Fence Trespassing; Auto/Manual Depth Setup, Human and Vehicle Rules, Tampering, Loitering, CNN classifier |
| Analytics Management | Web-based configuration and management, Masking of analytic detection areas, adjustable sensitivity,automatic responses, remote I/O control |
| Digital Video Compression | Two independent channels of H.264/H.265 or M-JPEG (except 4k) for visible and thermal |
| IP Rating | IP66 & IP67 |
| Humidity | 0-95% relative humidity |
| Image Uniformity Optimisation | Automatic Flat Field Correction (FFC); Thermal and Temporal Triggers |
| Certifications | IEC 62368 |
| Effective Resolution | 327,680 pixels |
| Streaming Resolution | Primary Stream: 640×512, Visible 4k: 3840 x 2160 |
| Operating Temperature Range | -40°C to 70°C/-40°F to 158°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Thermal AGC Region of Interest | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
| Ethernet Connector Type | RJ-45 |
FREQUENTLY ASKED QUESTIONS
What is the FH-Series ID used for?
It’s designed for perimeter security and intrusion detection, combining thermal imaging, 4K visible video, and onboard analytics.
What types of analytics are included?
The camera includes onboard AI-based analytics for detecting and classifying humans and vehicles, reducing false alarms.
Does it support both thermal and visible imaging?
Yes, it features dual sensors: a thermal sensor for detection in all lighting conditions and a 4K visible sensor for identification.
Can it operate in complete darkness?
Absolutely. The thermal sensor detects heat signatures, making it effective day or night, even in total darkness.
What is the detection range?
Detection range varies by model and lens configuration, but it can detect humans and vehicles hundreds of metres away.
Is it compatible with third-party VMS platforms?
Yes, it supports ONVIF protocols and integrates with many leading video management systems.
What environmental conditions can it withstand?
It’s built for harsh outdoor environments, with IP66/67 ratings and wide temperature tolerance.
Does it support edge recording?
Yes, it includes onboard storage options and supports edge recording for redundancy.
What mounting options are available?
The FH-Series ID supports various mounting brackets for poles, walls, and ceilings.
Is it NDAA compliant?
Yes, the FH-Series ID is NDAA-compliant, making it suitable for use in government and critical infrastructure projects.
