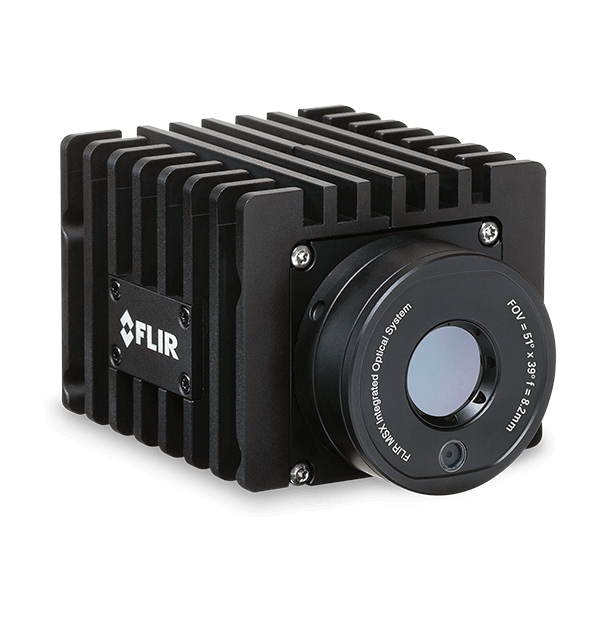

A50 – A70 Image Streaming
Fixed-Mount Thermal Camera
Stream, Control, Integrate—Affordably

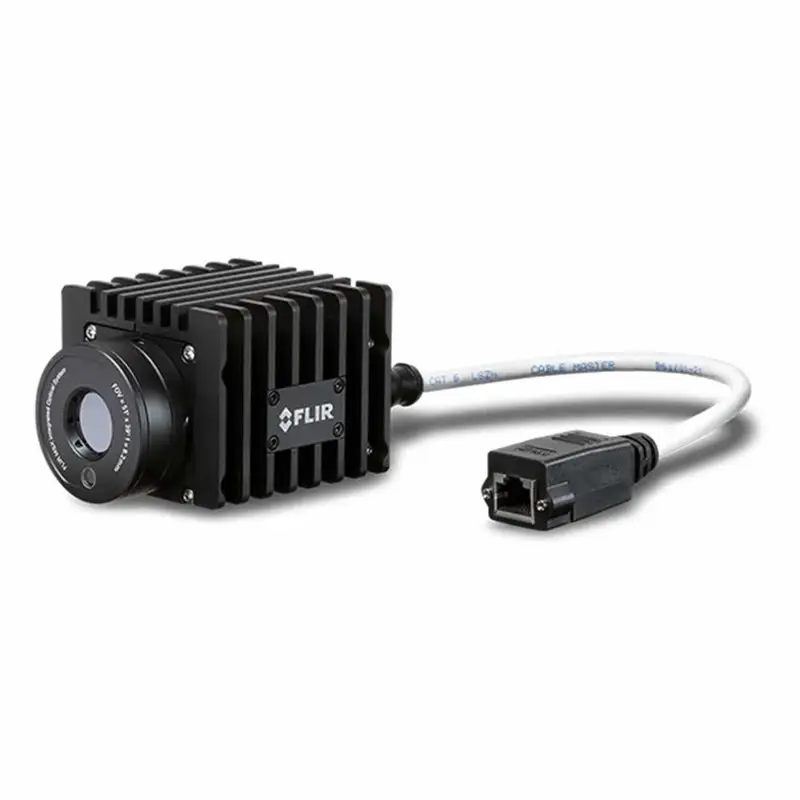

FLIR A50 and A70 Thermal Image Streaming Cameras are the right choice for users who want camera control capabilities and image streaming over Ethernet, as well as flexibility to perform analytics and raw data collection on thermal characteristics using preferred software applications.

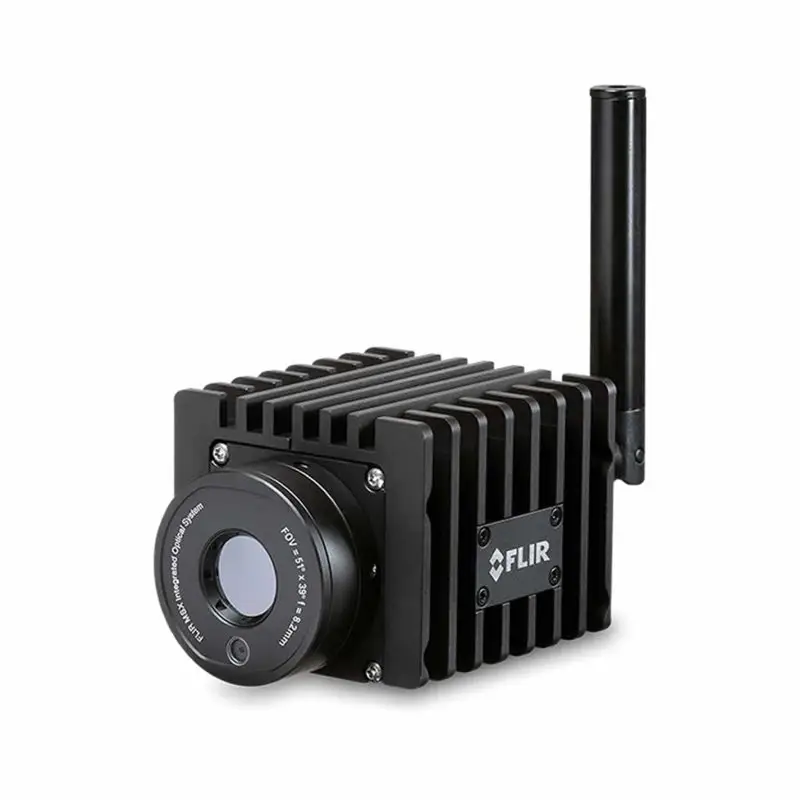

With options for Wi-Fi, an integrated visual camera, compressed radiometric image streaming, and ONVIF S compatibility (advanced version only), these small and lightweight fixed-focus automation cameras will optimise process control and quality assurance to improve yield, product quality, through-put time, and lower costs.
Improve Production and Quality
Quickly access thermal characteristics, with up to 640 × 480 (307,200 pixels) resolution and ±2°C accuracy, allowing users to optimise production settings and product quality.
Trouble-Free Integration
GigE Vision and GenICam compliant for camera control and thermal/visual image video streaming over Ethernet into third-party machine vision applications.
Rugged and Easy to Install

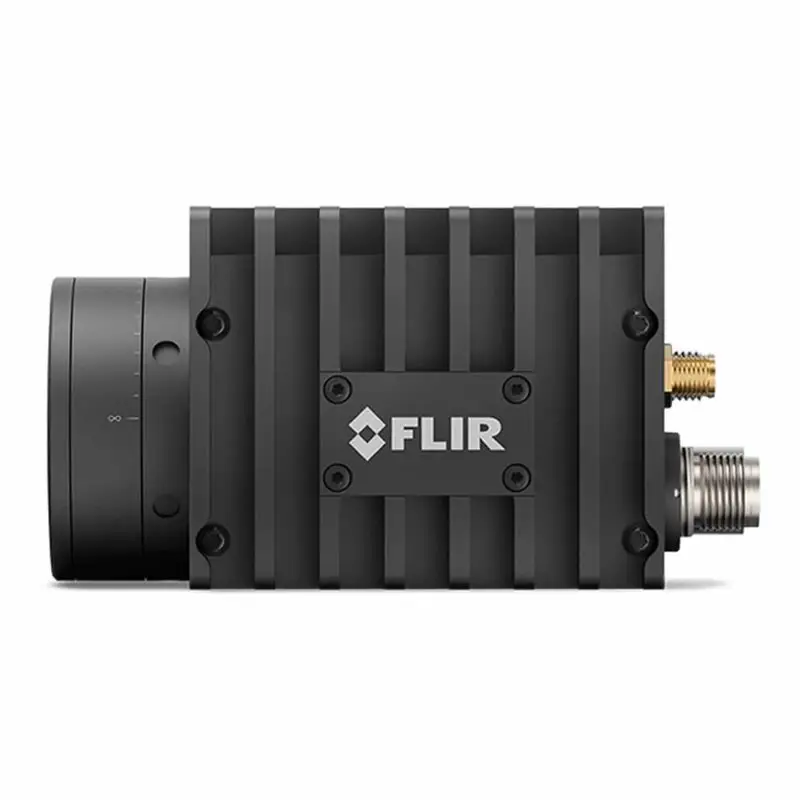

Install the lightweight, IP66 rated camera with M8/12 connectors in any location – with multiple mounting options.
DOCUMENTS
FREQUENTLY ASKED QUESTIONS
What is FLIR Image Streaming Configuration and how does it work?
It enables camera control and image streaming over Ethernet using industry-standard protocols like GigE Vision and GenICam. Advanced configurations support compressed radiometric streaming via FLIR Atlas SDK.
Can FLIR A50/A70 cameras stream both thermal and visual images?
Yes. They support simultaneous thermal and visual image streaming when equipped with the optional integrated visual camera.
What software is compatible with FLIR A50/A70 for image streaming?
These cameras integrate with FLIR United VMS, third-party VMS platforms like Milestone and Genetec, and analytics platforms via REST API.
What are the resolution and frame rate specifications?
- A50: 464 × 348 IR resolution.
- A70: 640 × 480 IR resolution.
- Frame rate: 30 Hz.
- Visual resolution: 1280 × 960 pixels (optional).
- Thermal sensitivity: <35 mK to <60 mK depending on lens.
Is the image streaming configuration built into the camera or added later?
It must be selected at the time of purchase. The Smart Sensor Configuration is embedded during manufacturing and cannot be added post-sale.
