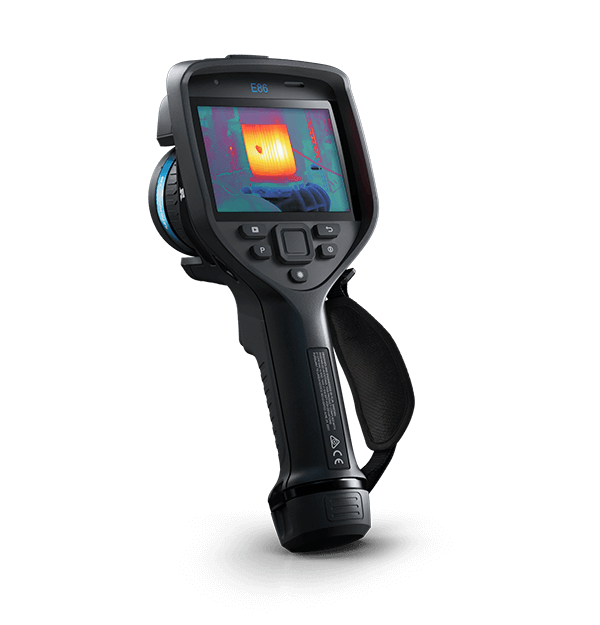

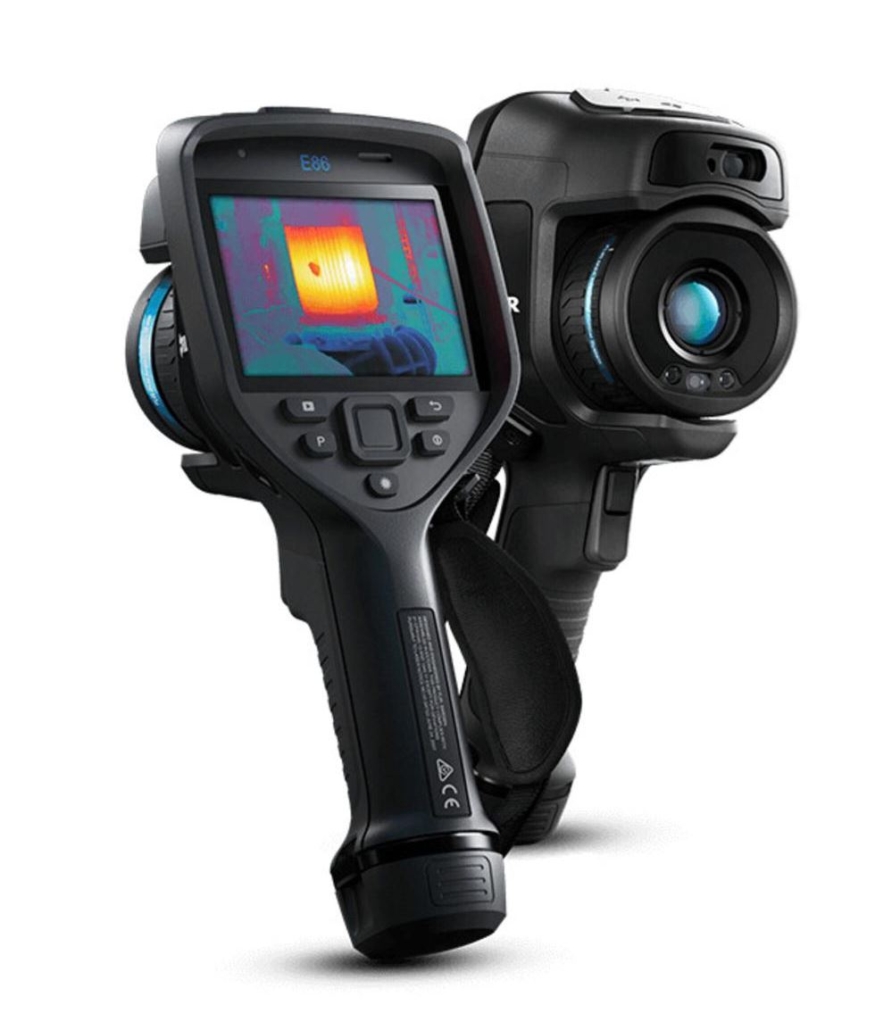

FLIR E86
Advanced Thermal Imaging Camera
Multispectral Fixed Camera for Perimeter Protection
The FLIR E86 is packed with high-performance features needed for fast, accurate detection, and when paired with a FLIR FlexView dual field-of-view lens you can instantly switch from wide-area to telephoto scanning.
This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets.
Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax and MSX® ensure crisp, vibrant thermal images.
The onboard FLIR Inspection Route runs pre-planned routes to help you stay organised when surveying large or multiple locations.
FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing.
Laser Distance Measurement
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
Intelligent AutoCal™ Optics
Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
Streamlined Reporting
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday. (*Optional accessory software).
FLIR E86 Specifications
| IR Resolution | 464 × 348 pixels |
|---|---|
| Thermal Sensitivity/NETD | <40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Field of view (FOV) | 24° × 18°, 14° × 10° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
DOCUMENTS
FREQUENTLY ASKED QUESTIONS
What is the FH-Series ID used for?
It’s designed for perimeter security and intrusion detection, combining thermal imaging, 4K visible video, and onboard analytics.
What types of analytics are included?
The camera includes onboard AI-based analytics for detecting and classifying humans and vehicles, reducing false alarms.
Does it support both thermal and visible imaging?
Yes, it features dual sensors: a thermal sensor for detection in all lighting conditions and a 4K visible sensor for identification.
Can it operate in complete darkness?
Absolutely. The thermal sensor detects heat signatures, making it effective day or night, even in total darkness.
What is the detection range?
Detection range varies by model and lens configuration, but it can detect humans and vehicles hundreds of metres away.
