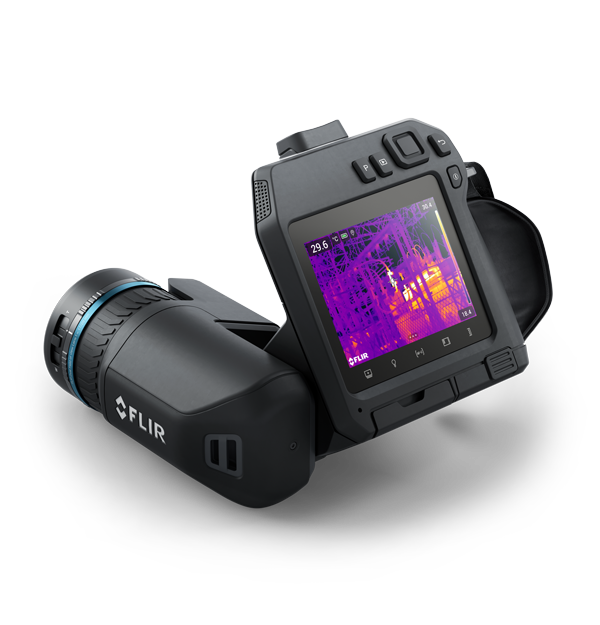

FLIR T865
High-Performance Handheld Infrared Camera
Precision thermal imaging for safe, non-contact industrial inspections.

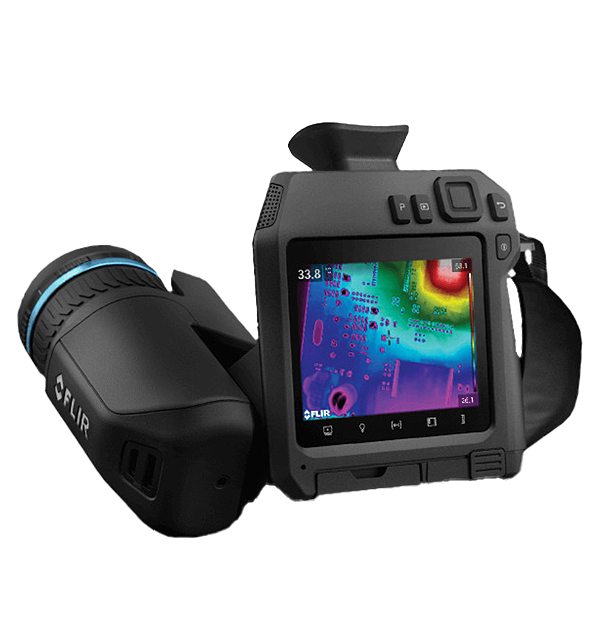

The FLIR T865 thermal imaging camera is a non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications.
With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser–assisted autofocus, you’ll get highly accurate temperature measurements every time.
Pair the T865 with a 6 FOV IR lens to perform inspections on small targets from long distances.
The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. The T865 also features FLIR Ignite for automatic uploading of images directly from the camera to the cloud for easy, secure storage and sharing.
Adding a FLIR T865 camera to a condition monitoring/predictive maintenance program can help reduce maintenance costs, improve system efficiency and reliability, and prevent downtime due to outages.
Improve Workflow Efficiencies

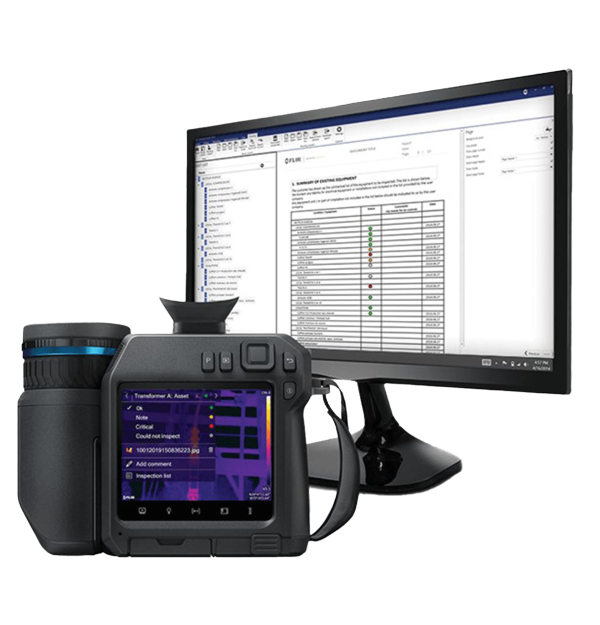

Develop inspection routes in FLIR Thermal Studio Pro and upload to a T865 using Route Creator to quickly and easily collect and manage critical data.
Work Safely and Comfortably

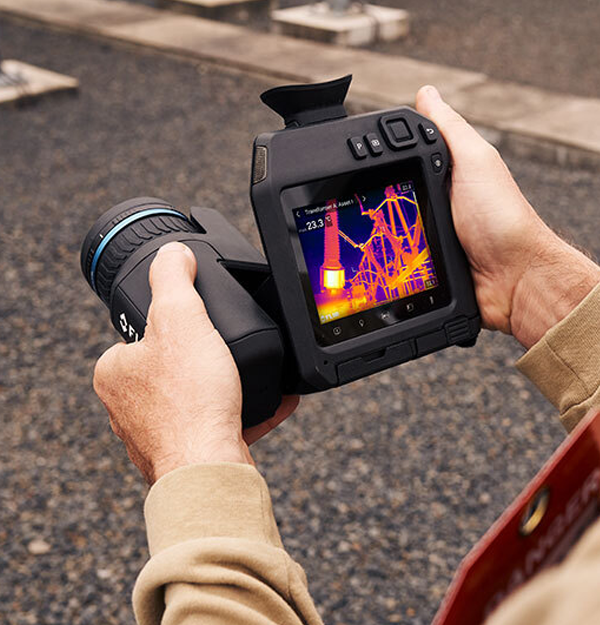

Assess the state of equipment from a safe distance, at any angle, or in any lighting condition using the 180° rotating optical block, integrated eyepiece viewfinder, and 4–inch color IPS display.
Make Critical Decisions Quickly
Increase in–field efficiency with exceptional measurement accuracy, enhanced thermal imagery, and workflow optimizations to save time and share data faster.
FLIR T865 Specifications
| IR Resolution | 640 × 480 pixels |
|---|---|
| Thermal Sensitivity/NETD | <40 mK @ 30°C (24° lens) |
| Accuracy | ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F) |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
DOCUMENTS
FREQUENTLY ASKED QUESTIONS
What is the FH-Series ID used for?
It’s designed for perimeter security and intrusion detection, combining thermal imaging, 4K visible video, and onboard analytics.
What types of analytics are included?
The camera includes onboard AI-based analytics for detecting and classifying humans and vehicles, reducing false alarms.
Does it support both thermal and visible imaging?
Yes, it features dual sensors: a thermal sensor for detection in all lighting conditions and a 4K visible sensor for identification.
Can it operate in complete darkness?
Absolutely. The thermal sensor detects heat signatures, making it effective day or night, even in total darkness.
What is the detection range?
Detection range varies by model and lens configuration, but it can detect humans and vehicles hundreds of metres away.
Is it compatible with third-party VMS platforms?
Yes, it supports ONVIF protocols and integrates with many leading video management systems.
What environmental conditions can it withstand?
It’s built for harsh outdoor environments, with IP66/67 ratings and wide temperature tolerance.
Does it support edge recording?
Yes, it includes onboard storage options and supports edge recording for redundancy.
What mounting options are available?
The FH-Series ID supports various mounting brackets for poles, walls, and ceilings.
Is it NDAA compliant?
Yes, the FH-Series ID is NDAA-compliant, making it suitable for use in government and critical infrastructure projects.
