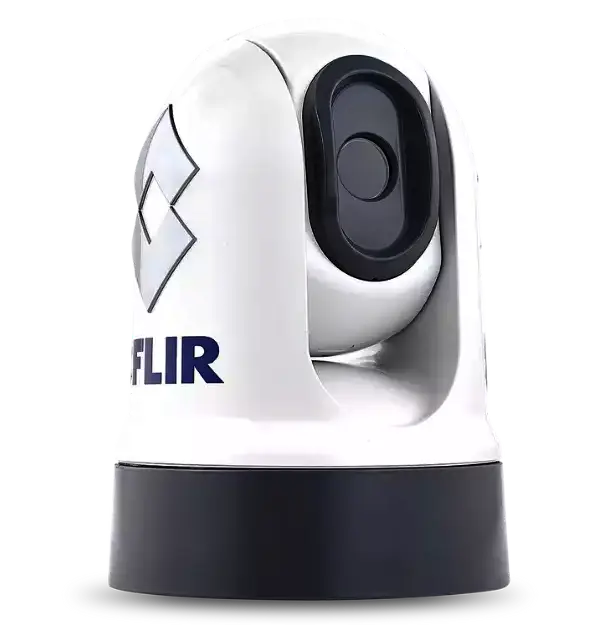

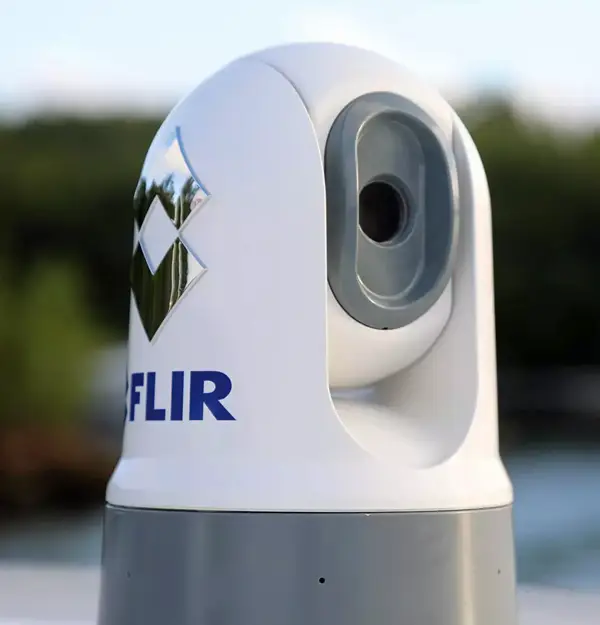

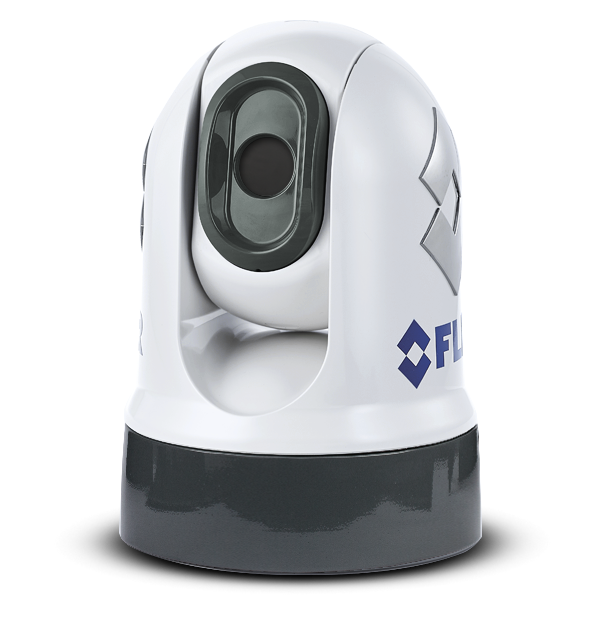

FLIR M232
Compact Pan/Tilt Marine Thermal Camera
ClearCruise Object Detection—Your Extra Set of Eyes
The FLIR M232 is one of FLIR’s most compact and cost-effective marine thermal cameras, designed to enhance safety and awareness on the water.
With a 320 × 240 resolution thermal sensor, it helps boaters detect vessels, obstacles, and navigation markers—even in complete darkness.
Enjoy full 360° panoramic viewing while underway, thanks to its pan-and-tilt capabilities.
When paired with a Raymarine Axiom multifunction display, the M232 unlocks FLIR’s ClearCruise intelligent thermal analytics.
This feature delivers audible and visual alerts when “non-water” objects—such as boats, buoys, or floating debris—enter the scene, boosting situational awareness both day and night.
Make Navigation Safer
The M232 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels, night and day. The M232 also helps boaters find people in the water faster than using spotlights and radar alone.
Optimised Viewing
M232 features a full 320×240 resolution for optimal horizon-to-horizon viewing and 4X continuous e-zoom.
Easy to Install on Any Vessel
The combination of the M232’s small, lightweight design and IP video connectivity make it a snap to install and integrate with multiple MFDs.
FLIR M232 Specifications
| Focus | Fixed 12 ft (3m) to infinity |
|---|---|
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| Thermal Detector Type | 320 × 240 VOx Microbolometer |
| Thermal E-Zoom | 4x Continuous |
| Thermal Field of View | 24° × 18° |
| Thermal Focal Length | 9.1mm |
| Video Refresh Rate | 9 Hz |
| Size | Without top-down riser; Diameter 6.3” (161.1mm), Height 9.0” (229.3mm) With top-down riser; Diameter 7.5” (190.0mm), Height 11.0” (279.0mm) |
| Weight | 6.0 lb (2.7 kg) w/o top-down riser 6.6 lb (3.0 kg) w/ top-down riser |
FREQUENTLY ASKED QUESTIONS
What is the FLIR M232 and what does it do?
The FLIR M232 is a compact, pan-and-tilt marine thermal camera designed to enhance safety and situational awareness on the water. It uses thermal imaging to detect vessels, obstacles, and navigation markers—even in complete darkness.
What resolution and viewing capabilities does it offer?
The M232 features a thermal resolution of 320 × 240 and supports 360° panoramic viewing with ±90° tilt. It also includes 4x digital zoom, powered by the Boson™ thermal core for clear nighttime visibility.
Can the M232 integrate with other marine systems?
Yes. When paired with a Raymarine Axiom multifunction display, the M232 enables ClearCruise™ intelligent thermal analytics, which provides audible and visual alerts for “non-water” objects like boats, buoys, and debris.
Is ClearCruise available on all installations?
No. ClearCruise is only supported on ball-up installations. It is not available on ball-down configurations. Users should consult their FLIR dealer for installation guidance.
What power and connectivity options are available?
The M232 operates on 12V or 24V power but does not support Power over Ethernet (PoE). It includes Raynet-to-RJ45 adapters and other cables for integration with marine electronics.
