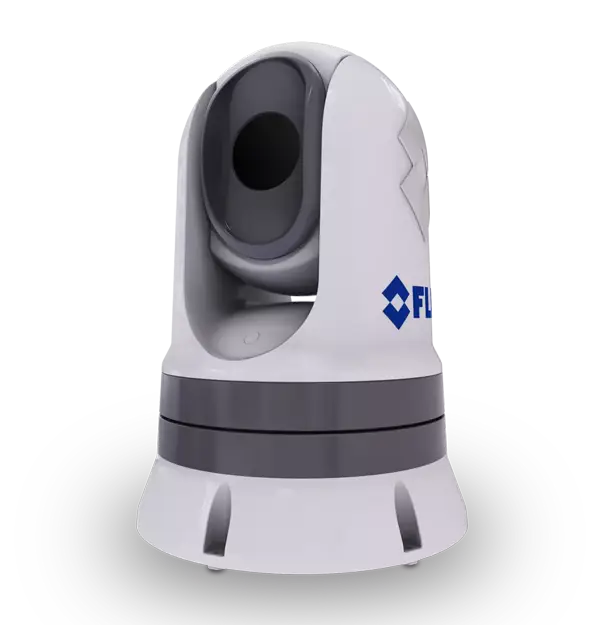

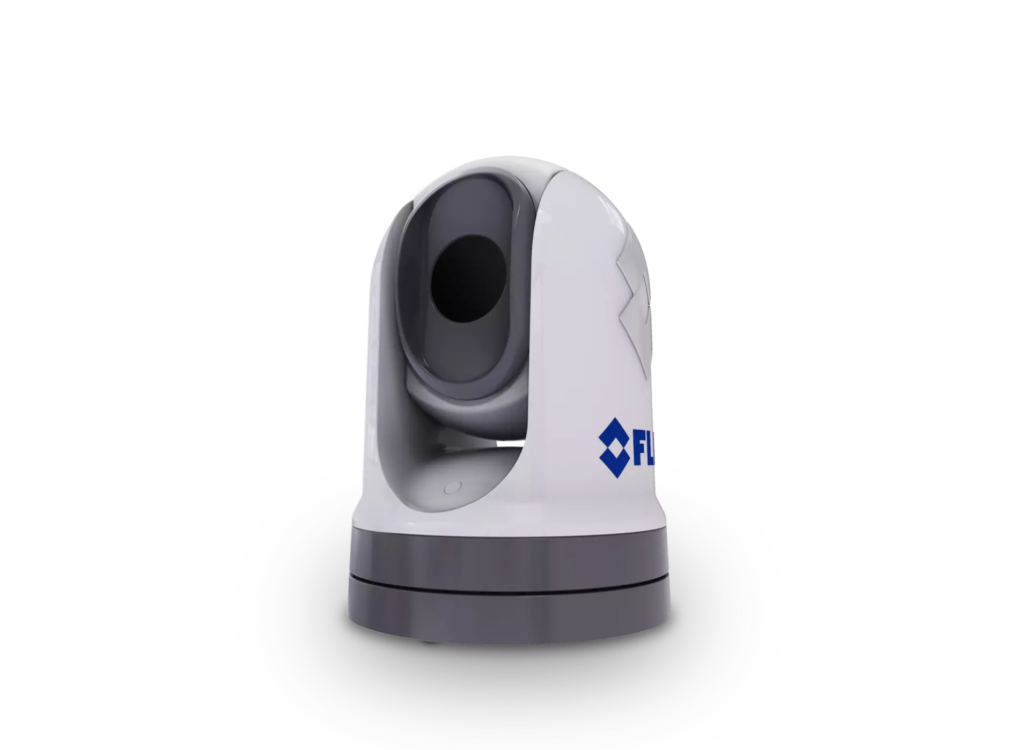

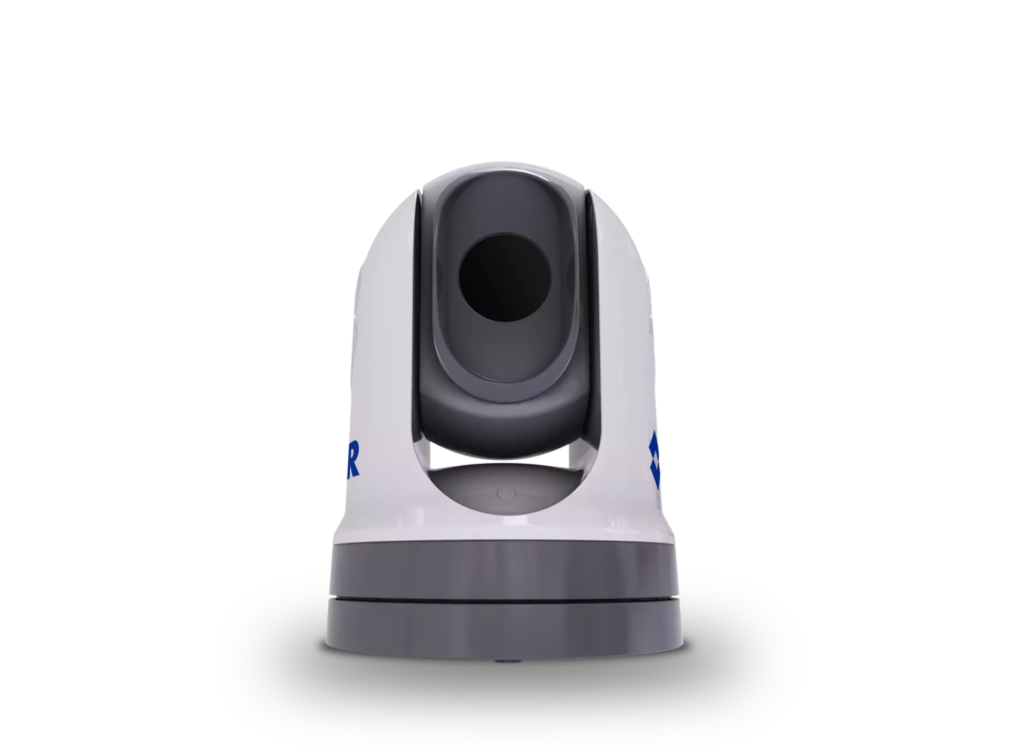

FLIR M332
Compact Pan/Tilt Marine Thermal CameraS with 2-axis gyro stabilisation.
Marine Thermal Camera with Active Gyro-Stabilisation
Engineered with a rugged, all-weather design, the M332 integrates one of FLIR’s most advanced thermal imaging cores to deliver superior situational awareness for law enforcement, commercial, and recreational use.
Its high-performance thermal vision and advanced gyro-stabilisation enable reliable detection of obstacles and targets—even in complete darkness and rough seas—ensuring safe navigation in the most demanding environments.
Safe Navigation in Low Visibility Environments
Thermal imaging offers vision in complete darkness, glare, and light fog.
A Steady View in Rough Seas
Two-axis mechanical stabilisation virtually eliminates the effects of pitch, heave, and yaw.
Seamless Integration
Exceptional connectivity with navigation and security systems.
FLIR M332 Specifications
| Focus | Fixed 12 ft (3m) to infinity |
|---|---|
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| Thermal Detector Type | 320×256 VOx Microbolometer |
| Thermal E-Zoom | 4x Continuous |
| Thermal Field of View | 24 ° x 18 ° |
| Thermal Focal Length | 9.1mm |
| Video Refresh Rate | 30 Hz or <9 Hz |
FREQUENTLY ASKED QUESTIONS
What is the thermal resolution of the FLIR M332?
The M332 features a 320×240 FLIR Boson thermal sensor, which provides standard resolution thermal imaging suitable for detecting boats, buoys, and other obstacles in complete darkness and adverse weather conditions.
Can the M332 be stabilized for use in rough seas?
Yes. The M332 includes 2-axis gyro-stabilisation—vertical stabilisation compensates for vessel pitch, and horizontal stabilisation maintains the camera’s field of view on a selected bearing, ensuring a steady image even in turbulent conditions.
How is the M332 controlled and integrated with marine systems?
The camera supports 360° pan and ±90° tilt, and can be controlled via a chartplotter or optional joystick. It integrates seamlessly with systems from Garmin, Raymarine, Furuno, and Simrad, allowing users to view and control the camera directly from their multifunction displays.
What are the video output options for the M332?
The M332 supports analog video, HD-SDI, and IP video, enabling flexible integration into various marine electronics setups.
Is the M332 suitable for law enforcement and commercial use?
Absolutely. Its rugged IPX6-rated housing and advanced thermal imaging make it ideal for law enforcement, commercial, and recreational marine applications, offering enhanced situational awareness in low visibility environments.
