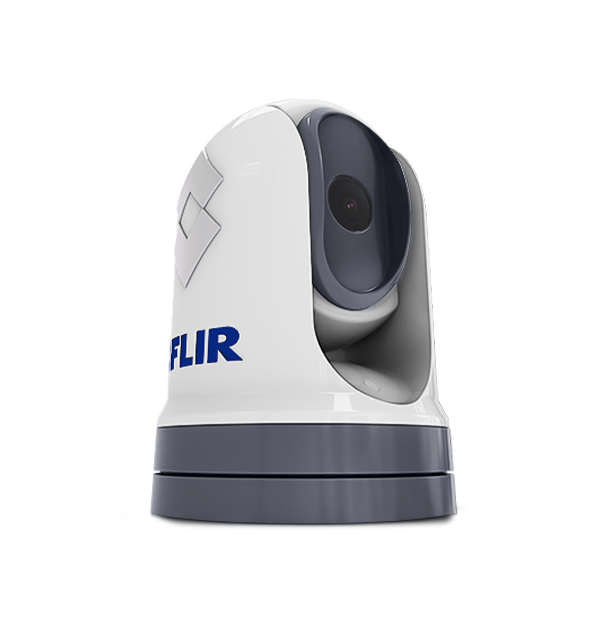

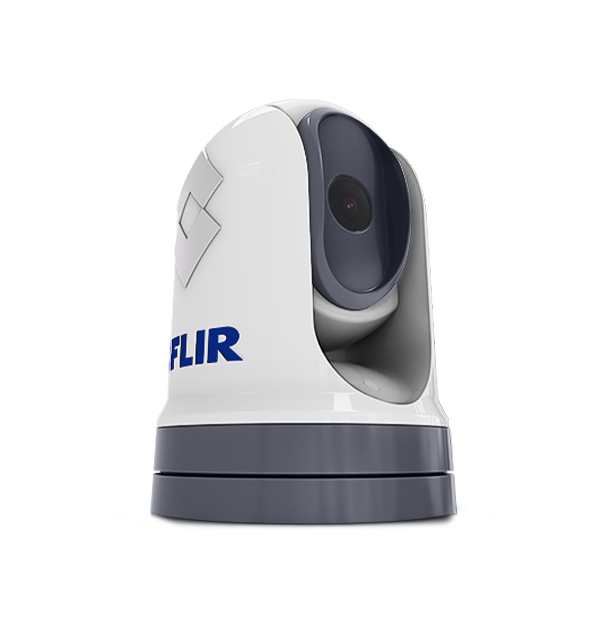

FLIR M364
Marine thermal camera
Marine Thermal Camera with Active Gyro-Stabilisation

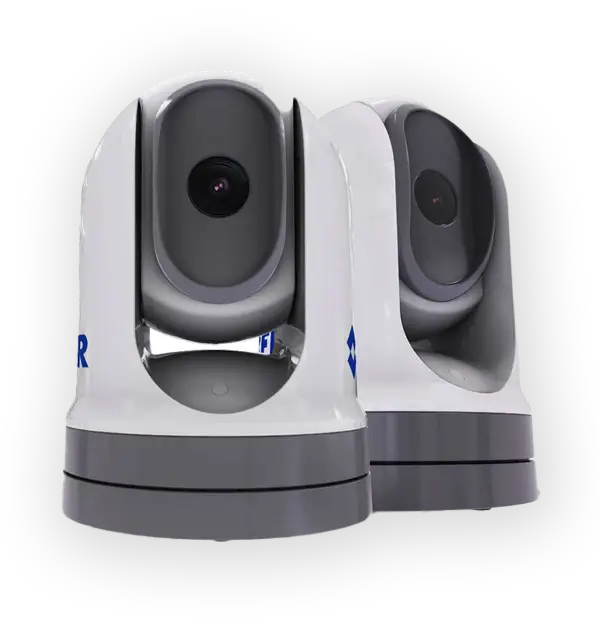

Engineered with a rugged, all-weather build and powered by cutting-edge FLIR thermal imaging technology, the M332 and M364 deliver enhanced situational awareness for law enforcement, commercial, and recreational use.
Featuring advanced gyro-stabilisation and high-performance thermal sensors, these systems detect obstacles and targets even in total darkness and rough seas—ensuring safe navigation in the most demanding environments.
Safe Navigation in Low Visibility Environments
Thermal imaging offers vision in complete darkness, glare, and light fog.
A Steady View in Rough Seas
Two-axis mechanical stabilisation virtually eliminates the effects of pitch, heave, and yaw.
Seamless Integration
Exceptional connectivity with navigation and security systems.
FLIR M364 Specifications
| Focus | Fixed 12 ft (3m) to infinity |
|---|---|
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| Thermal Detector Type | 640×512 VOx Microbolometer |
| Thermal E-Zoom | 4x Continuous |
| Thermal Field of View | 24 ° x 18 ° |
| Thermal Focal Length | 18 mm |
| Video Refresh Rate | 30 Hz |
FREQUENTLY ASKED QUESTIONS
What is the thermal resolution of the FLIR M364?
The M364 features a 640×512 VOx microbolometer sensor, offering high-resolution thermal imaging that significantly improves detection range and image clarity compared to standard sensors.
Does the M364 support gyro-stabilization for rough conditions?
Yes. It includes 2-axis gyro-stabilisation—vertical stabilisation compensates for vessel pitch, and horizontal stabilisation maintains the camera’s field of view on a selected bearing, ensuring a steady image even in turbulent seas.
What are the video output options for the M364?

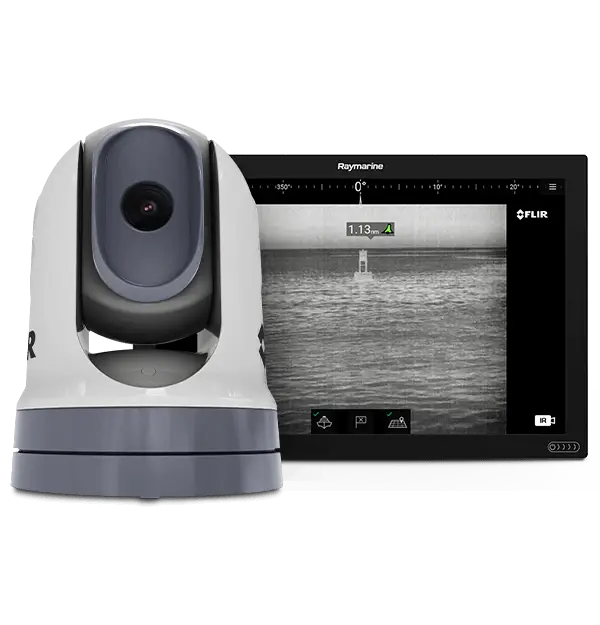

The camera supports 360° pan and ±90° tilt, and can be controlled via a chartplotter or optional joystick. It integrates seamlessly with systems from Garmin, Raymarine, Furuno, and Simrad, allowing users to view and control the camera directly from multifunction displays.
What is the detection range of the FLIR M364?
Detection range depends on environmental conditions and setup, but the high-resolution sensor offers almost twice the range of standard thermal sensors. It can detect objects in complete darkness, glare, and light fog.
Is the FLIR M364 weatherproof and suitable for harsh environments?
Absolutely. The camera features a rugged IPX6-rated housing, making it resistant to water and harsh marine conditions. It’s built for reliable performance in all weather.
