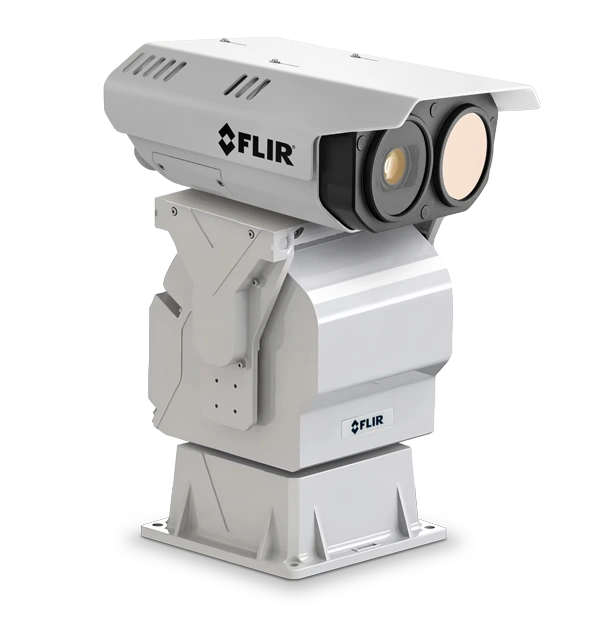

FH-Series R PTZ
Model: FH-625 R PTU, 25 MM
Multi-Spectral Pan-Tilt-Zoom Camera for Fire Detection and Monitoring of Surface Temperature Thresholds
The FH-Series R PTZ is a ruggedized, fixed Pan-Tilt Zoom IP visible plus thermal radiometric camera for fire detection and security applications.
This multi-spectral camera integrates industry-leading thermal imaging with 1080p visible imaging to provide rapid visual verification of smoke and hot spots and for detecting fires early in outdoor areas.
The onboard radiometry in the camera, combined with Pan-Tilt-Zoom functionality, enables continuous wide area coverage and round the clock monitoring against potential fires.
When a hot spot or surface temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics.
Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality.
Protect large and small areas from fires
Integrates a high-resolution radiometric < 35 mK NETD thermal sensor with a 1080p visual, 30x zoom camera for hot spot detection and visual verification. [/av_textblock] [/av_one_third][av_one_third min_height='' vertical_alignment='av-align-top' space='' row_boxshadow='' row_boxshadow_width='10' row_boxshadow_color='' custom_margin='' margin='0px' av-desktop-margin='' av-medium-margin='' av-small-margin='' av-mini-margin='' mobile_breaking='' mobile_column_order='' border='' border_style='solid' border_color='' radius='' min_col_height='' padding='' av-desktop-padding='' av-medium-padding='' av-small-padding='' av-mini-padding='' svg_div_top='' svg_div_top_color='#333333' svg_div_top_width='100' svg_div_top_height='50' svg_div_top_max_height='none' svg_div_top_flip='' svg_div_top_invert='' svg_div_top_front='' svg_div_top_opacity='' svg_div_top_preview='' svg_div_bottom='' svg_div_bottom_color='#333333' svg_div_bottom_width='100' svg_div_bottom_height='50' svg_div_bottom_max_height='none' svg_div_bottom_flip='' svg_div_bottom_invert='' svg_div_bottom_front='' svg_div_bottom_opacity='' svg_div_bottom_preview='' fold_type='' fold_height='' fold_more='Read more' fold_less='Read less' fold_text_style='' fold_btn_align='' column_boxshadow='' column_boxshadow_width='10' column_boxshadow_color='' background='bg_color' background_color='' background_gradient_direction='vertical' background_gradient_color1='#000000' background_gradient_color2='#ffffff' background_gradient_color3='' src='' src_dynamic='' background_position='top left' background_repeat='no-repeat' highlight='' highlight_size='' fold_overlay_color='' fold_text_color='' fold_btn_color='theme-color' fold_btn_bg_color='' fold_btn_font_color='' size-btn-text='' av-desktop-font-size-btn-text='' av-medium-font-size-btn-text='' av-small-font-size-btn-text='' av-mini-font-size-btn-text='' animation='' animation_duration='' animation_custom_bg_color='' animation_z_index_curtain='100' parallax_parallax='' parallax_parallax_speed='' av-desktop-parallax_parallax='' av-desktop-parallax_parallax_speed='' av-medium-parallax_parallax='' av-medium-parallax_parallax_speed='' av-small-parallax_parallax='' av-small-parallax_parallax_speed='' av-mini-parallax_parallax='' av-mini-parallax_parallax_speed='' fold_timer='' z_index_fold='' css_position='' css_position_location='' css_position_z_index='' av-desktop-css_position='' av-desktop-css_position_location='' av-desktop-css_position_z_index='' av-medium-css_position='' av-medium-css_position_location='' av-medium-css_position_z_index='' av-small-css_position='' av-small-css_position_location='' av-small-css_position_z_index='' av-mini-css_position='' av-mini-css_position_location='' av-mini-css_position_z_index='' link='' link_dynamic='' linktarget='' link_hover='' title_attr='' alt_attr='' mobile_display='' mobile_col_pos='0' id='' custom_class='' template_class='' aria_label='' av_uid='av-1ch95y' sc_version='1.0'] [av_textblock fold_type='' fold_height='' fold_more='Read more' fold_less='Read less' fold_text_style='' fold_btn_align='' textblock_styling_align='' textblock_styling='' textblock_styling_gap='' textblock_styling_mobile='' size='' av-desktop-font-size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' font_color='' color='' fold_overlay_color='' fold_text_color='' fold_btn_color='theme-color' fold_btn_bg_color='' fold_btn_font_color='' size-btn-text='' av-desktop-font-size-btn-text='' av-medium-font-size-btn-text='' av-small-font-size-btn-text='' av-mini-font-size-btn-text='' fold_timer='' z_index_fold='' id='' custom_class='' template_class='' av_uid='av-mcy0vr2z' sc_version='1.0' admin_preview_bg='']
Detect hot spots early
Measures surface temperatures and processes temperature differences in real time.
Highly-customizable measurement and alarms
Onboard radiometry delivers minimum, maximum, average and differential temperature measurement in user-defined spots, box and polygon shaped areas.
General
| Detector Type | Long-life, uncooled Vox microbolometer |
|---|---|
| Enclosure | FH R PTZ camera: NEMA 4X PTU unit: aluminum alloy |
| Input Voltage | 24 V AC (±10%) 24 V DC (±10%)* *Ensure power supply is capped correctly to avoid overheatin |
| Power Consumption | FH-Series R PTZ + PTU Unit: ≤150 W |
| Size [L × W × H] | tba |
| Surge Immunity on AC Power Lines | EN 50130-4 (FH R PTZ camera only) |
| Surge Immunity on Signal Lines | EN 50130-4 (FH R PTZ camera only) |
| Weight | 18.1 kg (41.4 lbs) |
Compliance & Certifications
| Compliance and Certifications | FH R PTZ camera: FCC Part 15 (Subpart B, class A); UL Listed; RoHS; WEEE FH R PTZ camera plus PTU unit: Certifications Pending. ONVIF Profile S, G, T IEC 6236 |
|---|
Connections & Communications
| Control Protocols | IEEE 802.1X TLS / HTTPS User authentication Access control via firewall User credentials with policy enforcement Digest authentication |
|---|
Environmental
| Humidity | FH R PTZ camera: 0-95% relative humidity PTU unit: <90% relative humidity |
|---|---|
| IP Rating (dust & water ingress) | IP66 |
| Operating Temperature Range | -35°C to 65°C (-31°F to 149°F) |
| Shock | IEC 60068-2-27 (FH R PTZ camera only) |
| Storage Temperature | FH R PTZ camera: -55°C to 85°C (-67°F to 185°F) PTU unit: -40°C to 70°C (-40°F to 158°F) |
| Vandal Resistance | IK10 (except windows; FH R PTZ camera only) |
| Vibration | IEC 60068-2-64 (FH R PTZ camera only) |
Environmental & Certifications
| Corrosion | FH R PTZ camera: MIL-STD 810G, 1000 hr salt spray PTU unit: PH 6.5 to 7.2, continuous spraying for 48 hours without surface change |
|---|
Imaging & Optical
| Frame Rate | 30 Hz |
|---|---|
| Visible Camera Resolution | Full HD 1080p (1920 × 1080) |
| F_number | f/1.1 |
Measurement & Analysis
| Accuracy | Target below 100°C (212°F): ±5°C (±9°F) Target below 150°C (302°F): ±5% Target above 150°C (302°F): ±15% Measured at 25°C ambient temperature. Inaccuracy can increase at extreme temperatures. |
|---|---|
| Object Temperature Range | High Gain Mode: 0°C to 160°C (32°F to 320°F) Low Gain Mode: 0°C to 380°C (32°F to 716°F) |
Other
| Optical zoom_Visible | Up to 30x |
|---|---|
| Surge Protection | FH R PTZ camera: TVS 6000 V lightning protection, surge protection, voltage transient protection PTU Unit power: 2000 V (line to ground 2000 V, line to line 1000 V) Video signal: 1000 V (line to ground 1000 V, line to line 500 V) |
PTZ
| Pan Angle | 360° continuous |
|---|---|
| Pan Speed | 0.1°/s to ~55°/s |
| Presets – Preset Accuracy | Supports 200 valid preset bits; ±0.1° accuracy |
| Tilt Angle | -75° to ~40° |
| Tilt Speed | 0.1°/s to ~25°/s |
Sensor & Optical
| Field of View | 25° × 18° |
|---|
Storage
| Field of View | 25° × 18° |
|---|
System Integration
| Digital I_O | Input: two dry alarm contacts Output: two relay contacts, 1A max and 24 V AC/30 V DC Normally open or normally closed (configurable) |
|---|---|
| Ethernet | 100/1000 Mbps |
| Network APIs | NEXUS SDK, NEXUS CGI, ONVIF PROFILES S, G, and T |
| Streaming Resolution | Primary and Secondary Streams Thermal: VGA (640 × 512) Visible: 1080p (1920 × 1080), 720p (1280 × 720), VGA (640 × 480) |
| Supported Protocols | IPv4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X |
Thermal Camera
| Image Uniformity Optimization | Automatic flat-field correction (FFC) – thermal and temporal triggers |
|---|---|
| Pixel Pitch | 17 µm |
| Thermal AGC Region of Interest [ROI] | Default, presets, and user-definable to ensure optimal image quality on subjects of interest |
| Thermal Image Settings | Auto AGC, Digital Detail Enhancement (DDE), brightness, contrast |
Video & Recording
| Video Compression | H.264/H.265/MJPEG: four independent streams (2 visible, 2 thermal) |
|---|
Visible Camera
| Array format | 640 × 512 |
|---|---|
| Focal Length | 25 mm |
| Sensitivity | < 35 mK @ 25°C (77°F), f/1.0 |
| Spectral Range | 7.5 µm to 13.5 µm |
| Video Frame Rate | NTSC: 5-30 fps / PAL: 5-25 fps |
| Visible f number | f/1.6–f/4.4 |
| Visible Field of View | HFOV: 2.34° to 59.8° / VFOV: 1.48° to 40.5° |
| Visible Focal Length | 4.5 mm to 135 mm |
